Autocar A6620046-001 Cab Latch Hydraulic
$513.93

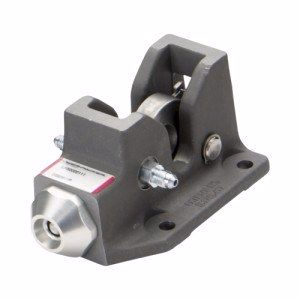

Genuine Autocar Truck Cab Latch Hydraulic A6620046-001.
Autocar hydraulic latch secures covers and cabs for safe travel and is ideal for new and existing fire and rescue applications. Compact size and strength, along with versatile mounting capability easily meet single or multiple latch needs. Our unique, patented design includes a latch indicator with options such as an indicator light or transmission lock that indicates when the latch has engaged or released. Pin reaction indicates the latch has engaged mechanically and extension of the pin indicates the latch has disengaged hydraulically.
Autocar hydraulic latch secures covers and cabs for safe travel and is ideal for new and existing fire and rescue applications. Compact size and strength, along with versatile mounting capability easily meet single or multiple latch needs. Our unique, patented design includes a latch indicator with options such as an indicator light or transmission lock that indicates when the latch has engaged or released. Pin reaction indicates the latch has engaged mechanically and extension of the pin indicates the latch has disengaged hydraulically.
- Autocar A6620046-001
- A6620046001
Â
FEATURES
- SAE #4 straight threads on both hydraulic ports
- Engages mechanically
- Releases hydraulically at 300 psi (20.7 Bar)
- Can be used with or without a suspension device
- Indicator pin is retracted when latch is engaged
- Maximum vertical pull load – 10,000 lbs (4536 kg)
- Maximum hydraulic pressure – 5,000 psi (345 Bar)
- Operating pressure to open latch – 200-300 psi (13.8-20.7 Bar)
- Recommended Fluid – MIL-H-5606 or equivalent
- Recommended operating temperature range – (-30°F to 130°F or -34°C to 54°C)
- Corrosion-resistance – 200 hours per B117
- Weight with catch bracket – 6.5 lbs (2.95 kg)
- Visual Indicator Pin – Standard
- Electric indicator switch – Optional
- Compact size
- Versatile Mounting
