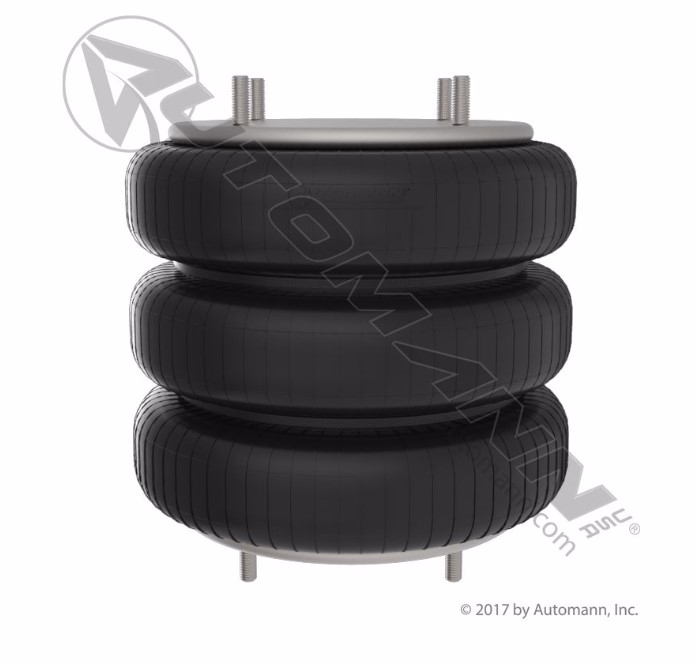

Automann ABSP3B32RA-7839 Air Spring Triple Convoluted
$214.78
Air Spring Triple Convoluted ABSP3B32RA7839
Automann ABSP3B32RA-7839
Convoluted Air Spring Triple Convoluted
Specifications
| Applications | Hendrickson Trailer Histeer Reyco Granning Ridewell Silent Drive Superior Watson and Chalin |
| Type | Triple Convoluted |
| Brand | Automann Phoenix |
| Automann Bellows# |
SP3B32RA |
| Goodyear Bellows# | 556-33-8-335 |
| Contitech Bellows# | FT 530-35 |
| Load (Lbs) @80 PSI | 8900 |
| Load (Lbs) @100 PSI | 11100 |
| Natural Freq. (CPM) | 62 |
| Design Height (In) | 13.00 |
| Top Plate Hole/Stud Qty | 5 |
| Top Plate Dia. (A) | 11.31 |
| Top Plate C to C Dia. (B) | 6.25 |
| Bottom Plate Hole/Stud Qty | 4 |
| Bottom Plate Dia. (C) | 11.31 |
| Bottom Plate C to C Dia. (D) | 6.25" |
| Bumper | Yes |
| Min. Height | 4.6 |
| Max. Height |
21.30 |
| Max. Dia. | 15.90 |
Crossreferences
- Contitech 64577, FT530-35437
- Firestone 7839, W013587839, W01-358-7839
- Goodyear 3B14359, 3B14-359, 3B14456, 3B14-456
- Granning 1476
- Hendrickson B6861, B-6861, S6861, S-6861
- IHC 554803C1
- Neway 57007839
- Ridewell 1003587839C, S1505C
- Watson&Chalin AS0033, AS-0033
