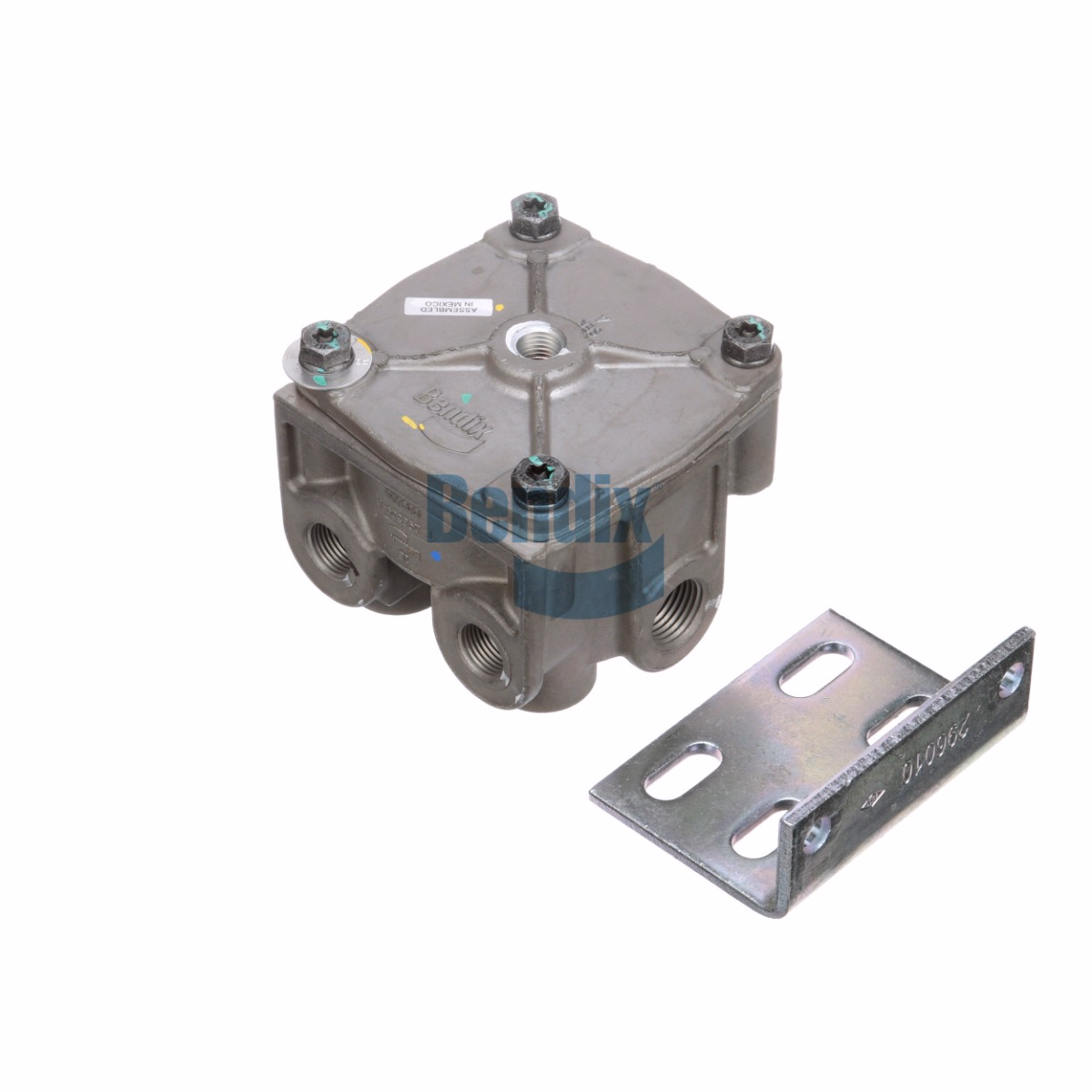

Bendix 065206 Valve, R-12

Bendix 065206 Valve, R12

• Mounting .96 IN x .40 IN Slot (4x)
• Mounting Bracket Location Loose in Box
• Body Configuration 2 SUP / 4 DEL (2H + 2V)
• Supply Port 1 1/2-14 NPT
• Supply Port 2 1/2-14 NPT
• Control / Secondary Service Port 1/4-18 NPT
• Delivery Port 1 - 3/8-18 NPT
• Delivery Port 2 - 3/8-18 NPT
• Delivery Port 3 - 3/8-18 NPT
• Delivery Port 4 - 3/8-18 NPT
• Exhaust Port - Dust Shield
• Crack Pressure - 5.5 PSI
• TMC Washer - RV055
• Maximum Operating Temperature - 200 °F (93 °C)
• Minimum Operating Temperature - -40 °F (-40 °C)
