Bendix 065476 R-12P Relay Valve
$300.82
$300.82
*41.3% Savings
$176.59

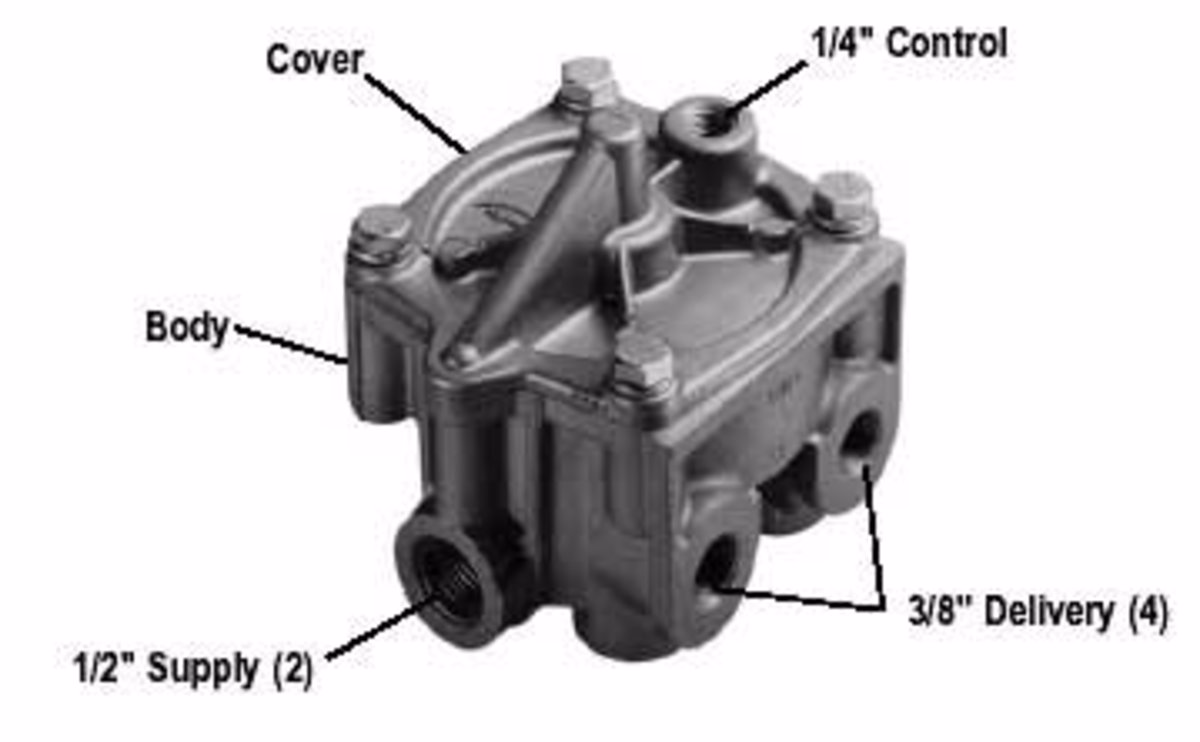

Bendix 065476 Relay Valve
Bendix 065476 Relay Valve
- Bendix Relay Valve 065476
- Original Relay Valve 065476
Bendix 065476 Technical Attributes Guide
Bendix 065476 Installation Instructions
Bendix 065476 Service Data
| Dimensions | ||
|---|---|---|
| Length | Width | Height |
| 104 millimeter | 114 millimeter | 118 millimeter |
| Technical Attributes | |
|---|---|
| Mounting | .96 IN x .40 IN Slot (4x) |
| Mounting Bracket Location | Loose in Box |
| Body Configuration | 2 SUP / 4 DEL (2H + 2V) |
| Supply Port 1 | 1/2-14 NPT |
| Supply Port 2 | 1/2-14 NPT |
| Internal Supply Passage to Cover | Yes |
| Control / Secondary Service Port | 1/4-18 NPT |
| Contol Port Orientation (CW from Front Face) | 90° |
| Delivery Port 1 | 3/8-18 NPT |
| Delivery Port 2 | 3/8-18 NPT |
| Delivery Port 3 | 3/8-18 NPT |
| Delivery Port 4 | 3/8-18 NPT |
| Exhaust Port | Dust Shield |
| Crack Pressure | 0.0 PSI |
| TMC Washer | RD000 |
| Maximum Operating Temperature | 200 °F (93 °C) |
| Minimum Operating Temperature | -40 °F (-40 °C) |
