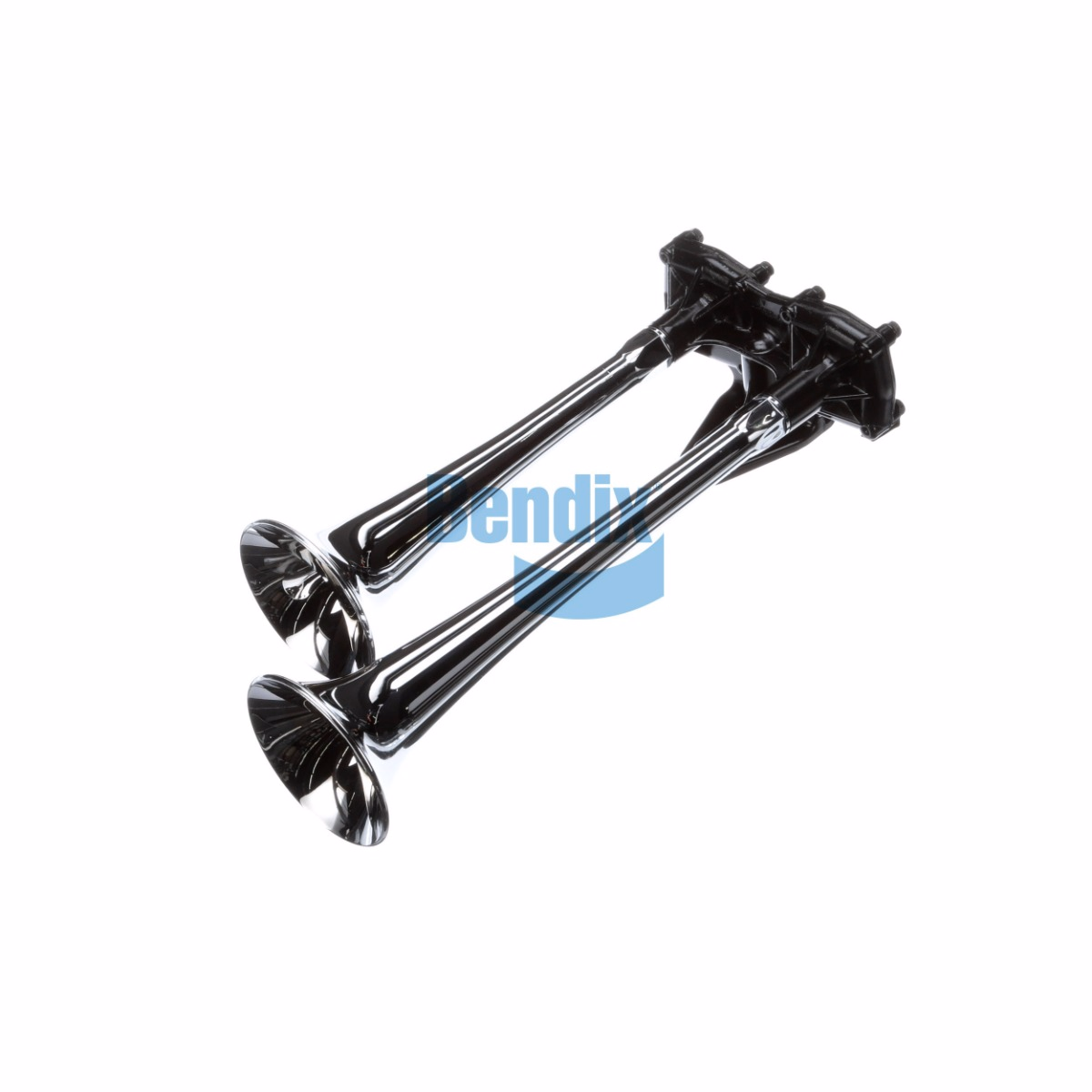

Bendix 101495 PH-2 Horn ASM
$395.19
Bendix 101495 Horn ASM FG#3621
Bendix 101495 Horn ASM FG#3621
- Bendix Horn ASM 101495
- Replaced Parts G2114309 04-9049947 388465 447506 447506A 459115 63001-0002 63001-0004
Bendix 101495 - Service Data
Bendix 101495 - Technical Attributes Guide
Technical Attributes
Mounting: Ø .350 Hole / 5/8-18 UNF-3A THD
Supply Port: 1/8-27 NPT
Left Bell Length: 15.810 IN
Right Bell Length: 13.060 IN
Bell Color: Chrome Plated
Body Color: Black
Gasket Included: No
Washer Included: No
Lockwasher Included: Yes
Nut Included: Yes
Maximum Operating Temperature: 200 °F (93 °C)
Minimum Operating Temperature: -40 °F (-40 °C)
