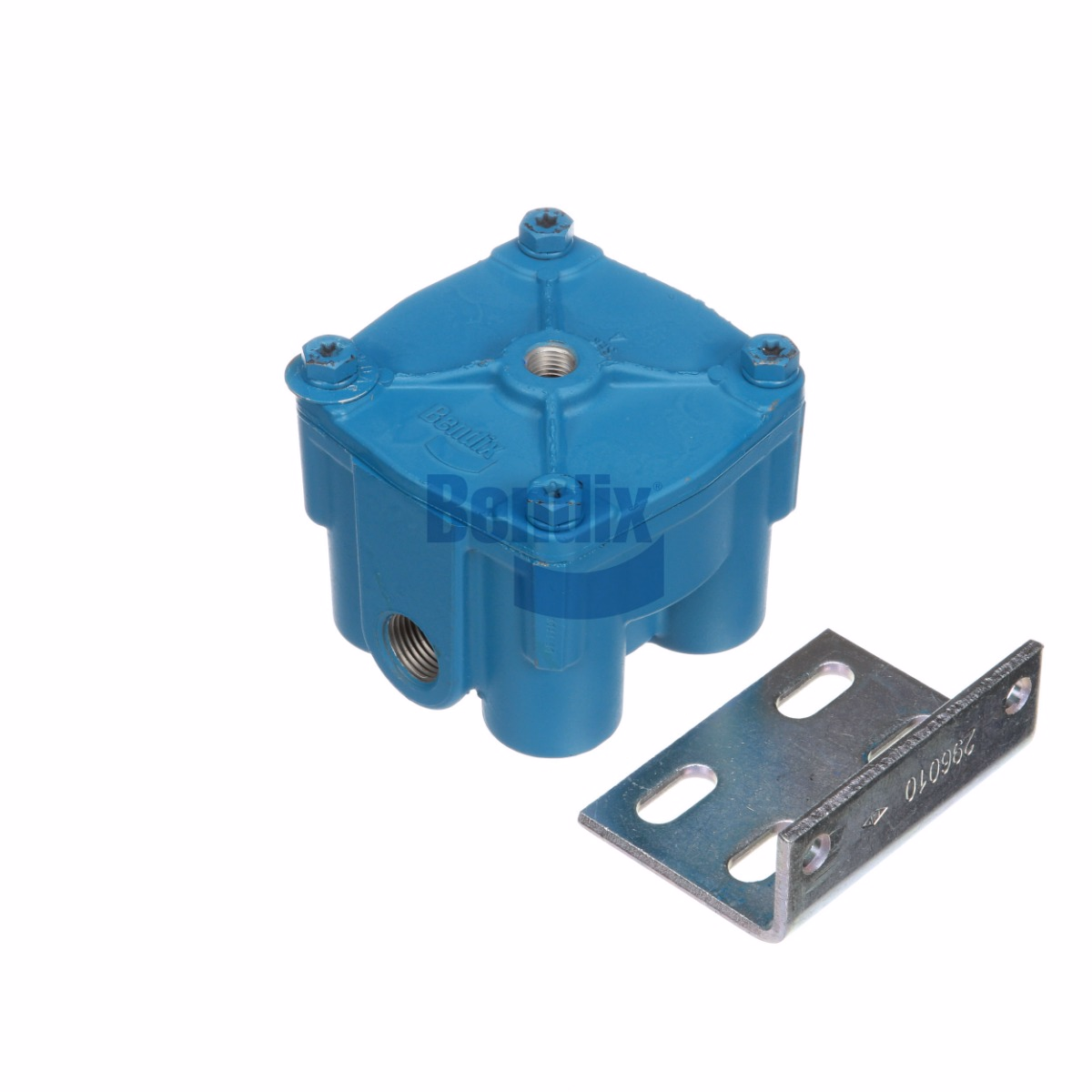

Bendix 102626RX Relay Valve R-12 - Reman
$49.81
Bendix Remanufactured R-12 Relay Valve Vertical delivery port.
Bendix Remanufactured R-12 Relay Valve Vertical delivery port.
- Crack Pressure 4 PSI
- Delivery Port Size PT 1/2"
- 4 Port Delivery located on teh bottom of the valve
- Volvo 1092930
- V1092930
Bendix 102626RX - Technical Attributes Guide
Mounting - .96 IN x .40 IN Slot (4x)
Mounting Bracket Location - Loose in Box
Body Configuration - 1 SUP / 4 DEL (V)
Supply Port 1 - 1/2-14 NPT
Control / Secondary Service Port - 1/4-18 NPT
Delivery Port 1 - 1/2-14 NPT
Delivery Port 2 - 1/2-14 NPT
Delivery Port 3 - 1/2-14 NPT
Delivery Port 4 - 1/2-14 NPT
Exhaust Port - Dust Shield
Crack Pressure - 4.0 PSI
TMC Washer - RV040
Maximum Operating Temperature - 200 °F (93 °C)
Minimum Operating Temperature - -40 °F (-40 °C)
