Bendix 103009N Relay Valve, R-12 - New
$82.87

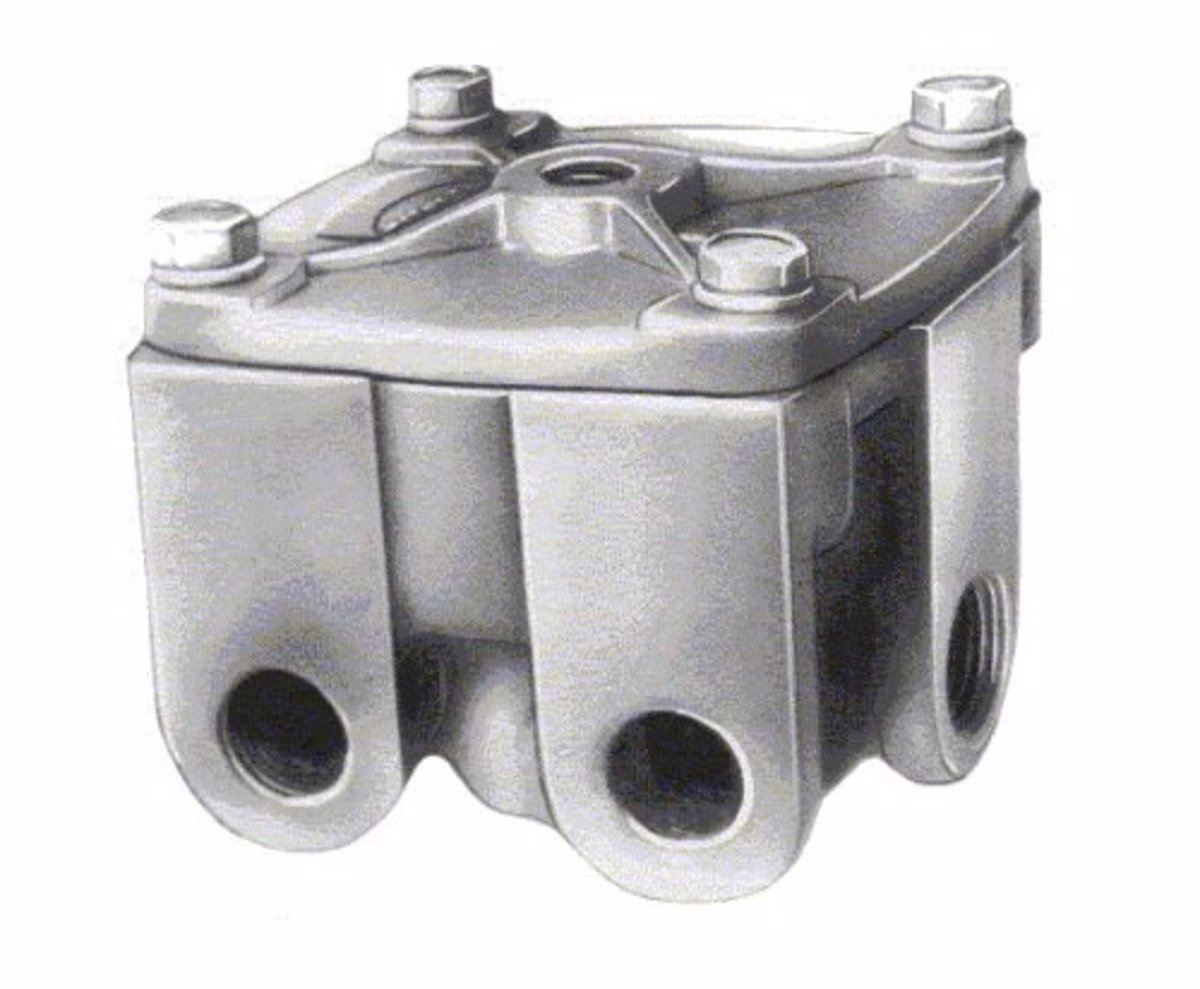

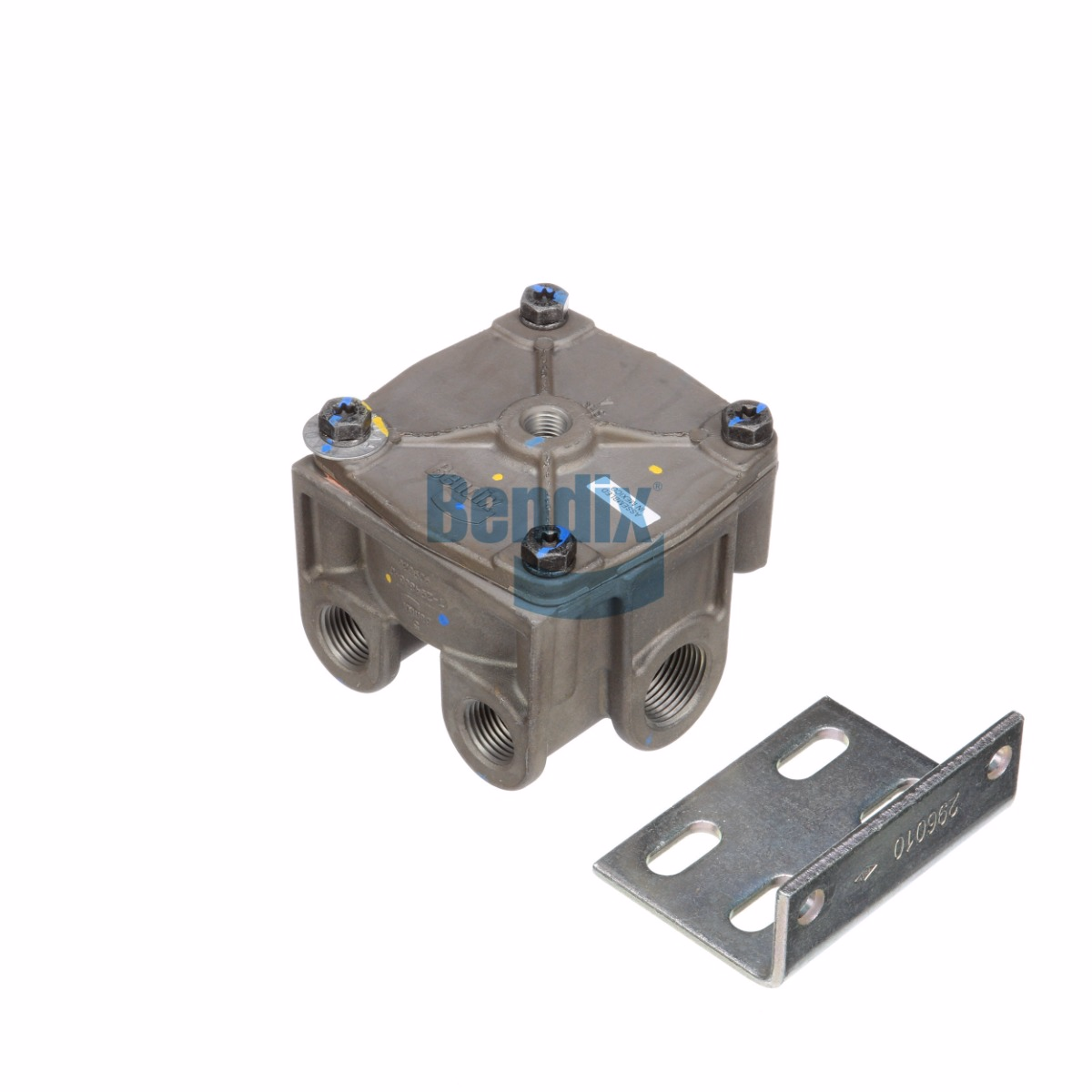

Genuine Bendix R12 Relay Valve 103009N
Bendix Horizontal Delivery Port.
- Crack Pressure PSI 4, Supply Port Size PT 3/4"
- Delivery PT 1/2"
- Volvo 85102510, G15525832, 72201-5003, 8068990
Bendix 103009N - Service Data
Bendix 103009N - Technical Attributes Guide
Mounting - .96 IN x .40 IN Slot (4x)
Mounting Bracket Location - Loose in Box
Body Configuration - 2 SUP / 2 DEL (H)
Supply Port 1 - 3/4-14 NPT
Supply Port 2 - 3/4-14 NPT
Control / Secondary Service Port - 1/4-18 NPT
Delivery Port 1 - 1/2-14 NPT
Delivery Port 2 - 1/2-14 NPT
Exhaust Port - Dust Shield
Crack Pressure - 4.0 PSI
TMC Washer - RV040
Maximum Operating Temperature - 200 °F (93 °C)
Minimum Operating Temperature - -40 °F (-40 °C)
