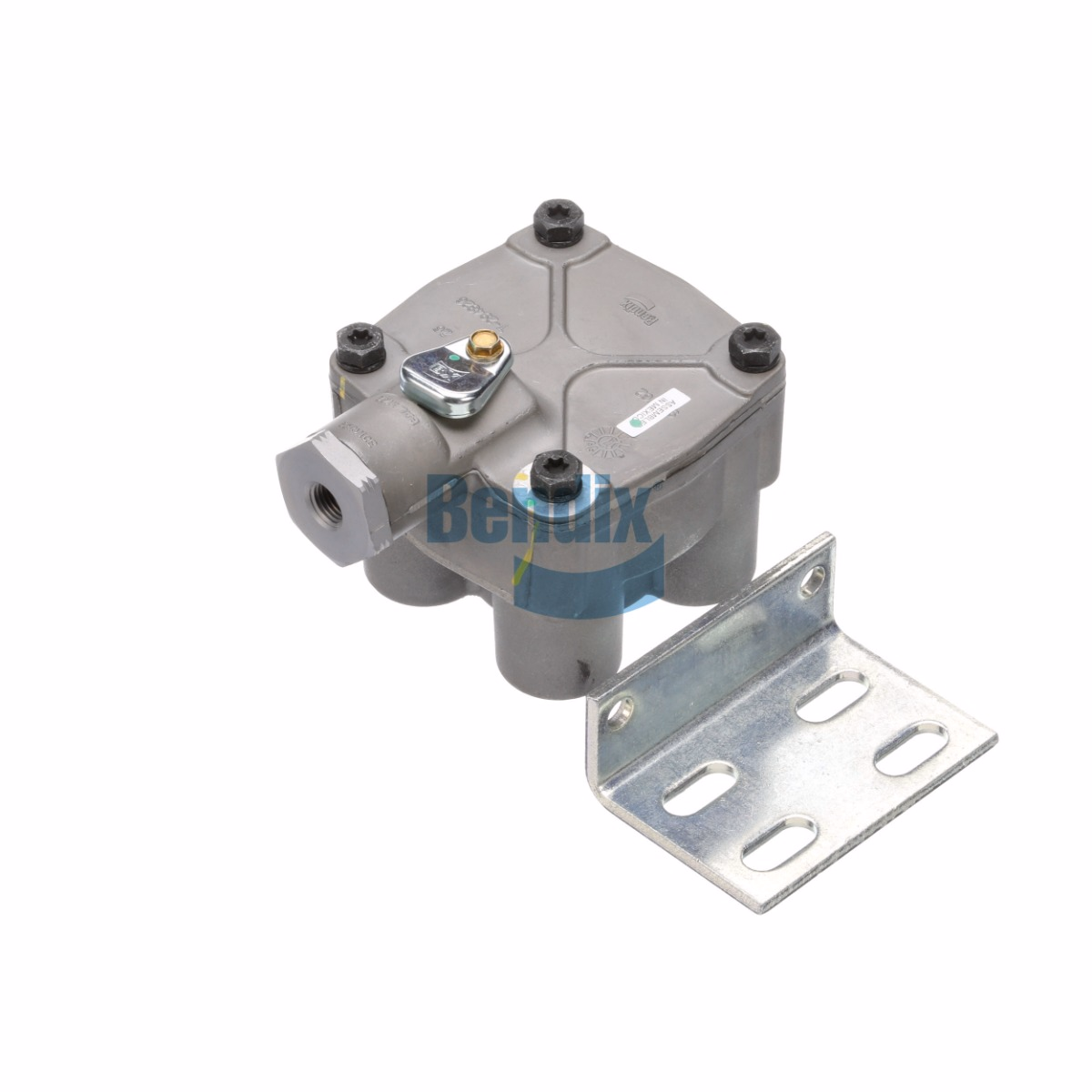

Bendix 103028N R-14 Relay Valve

Bendix 103028N R14 Relay Valve (quot;VREID)

• Bendix 103028N Valve
• Volvo part number 1117525
• Replaced Parts V1117525 72201-0016 72201-0025 3081424 3919465

Bendix 103028N - Installation Instructions
Bendix 103028N - Service Data
Bendix 103028N - Technical Attributes Guide

Mounting - .96 IN x .40 IN Slot (4x)
Mounting Bracket Location - Loose in Box
Body Configuration - 1 SUP / 4 DEL (V)
Supply Port 1 - 1/2-14 NPT
Control / Secondary Service Port - 1/4-18 NPT
Control Port Orientation (CW from Front Face) - 180°
Balance / Primary Service Port - 1/8-27 NPT (with Cover)
Delivery Port 1 - 1/2-14 NPT
Delivery Port 2 - 1/2-14 NPT
Delivery Port 3 - 1/2-14 NPT
Delivery Port 4 - 1/2-14 NPT
Exhaust Port - Dust Shield
Crack Pressure - 4.0 PSI
TMC Washer - RV040
Maximum Operating Temperature - 200 °F (93 °C)
Minimum Operating Temperature - -40 °F (-40 °C)
