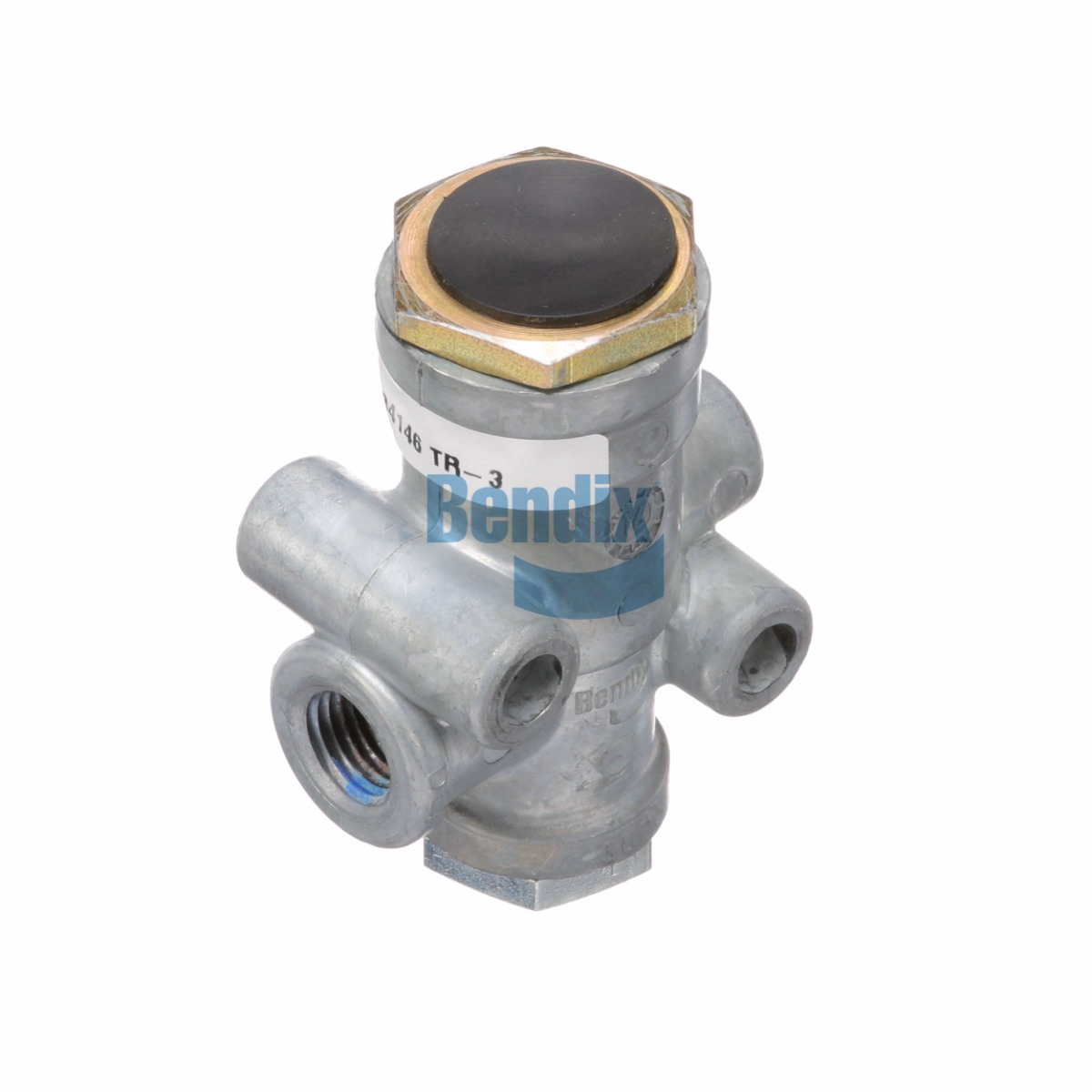

Bendix 284146N TR-3 Inversion Valve
$242.92
$242.92
*41.3% Savings
$142.60
Inversion Valve 745-284146N - Mack Truck Replaces 21007503, 745-284146
Bendix TR-3 Inversion Valve 284146N
Mack Truck 745-284146N - Inversion Valve
Replaces 21007503, 745-284146
Technical Attributes
Mounting: Ø .280 IN (2x)
Supply Port: 1/4-18 NPT
Delivery Port 1: 1/4-18 NPT
Control Port 1: 1/8-27 NPT
Exhaust Port: Dust Shield
Inlet Opening Descending Pressure (Common CON / SUP): 50 PSI
Exhaust Opening Ascending Pressure (Common CON / SUP): 60 PSI
Inlet Opening Pressure (Constant SUP / Variable CON): 35 PSI
Maximum Operating Temperature: 200 °F (93 °C)
Minimum Operating Temperature: -40 °F (-40 °C)
