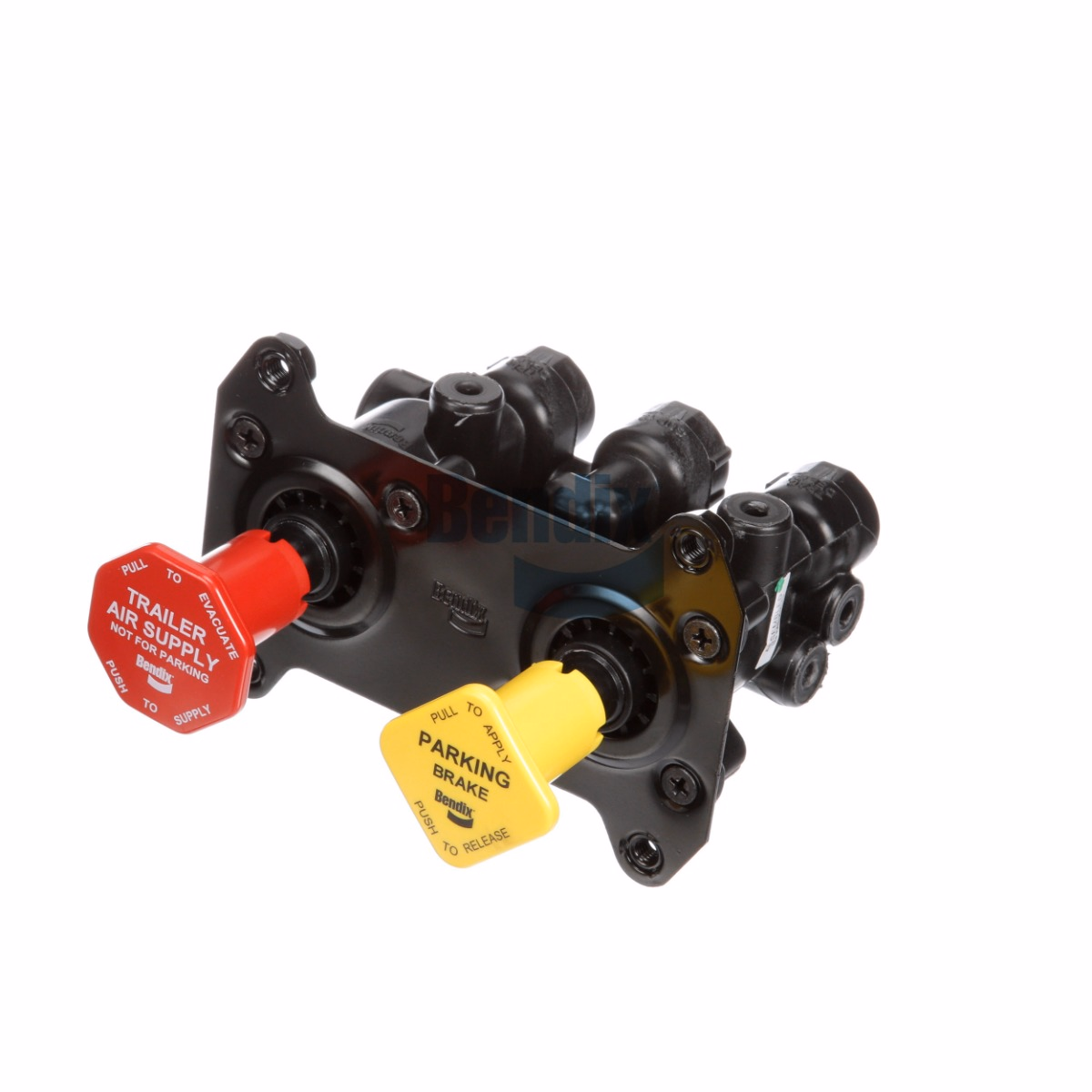

Bendix 800515 MV-3 Dash Valve

Genuine Bendix MV3 Dash Control Module 800515.

• New valve - Not remanufactured
• Volvo part number 85106365
• Replaces Bendix 065156

Mounting: M6 x 1-6H (4x)
Supply 11 Port: 1/4-18 NPT
Supply 12 Port: 1/4-18 NPT
Delivery 21 Port: 1/4-18 NPT
Delivery 22 Port: 1/4-18 NPT
Exhaust Port: 1/4-18 NPT
Tractor Trip Pressure: 30 ± 10 PSI
Trailer Trip Pressure: 35 ± 10 PSI
Trailer Override Pressure: 25 ± 5 PSI
Button(s) Included: Yes
Maximum Operating Temperature: 200 °F (93 °C)
Minimum Operating Temperature: -40 °F (-40 °C)
