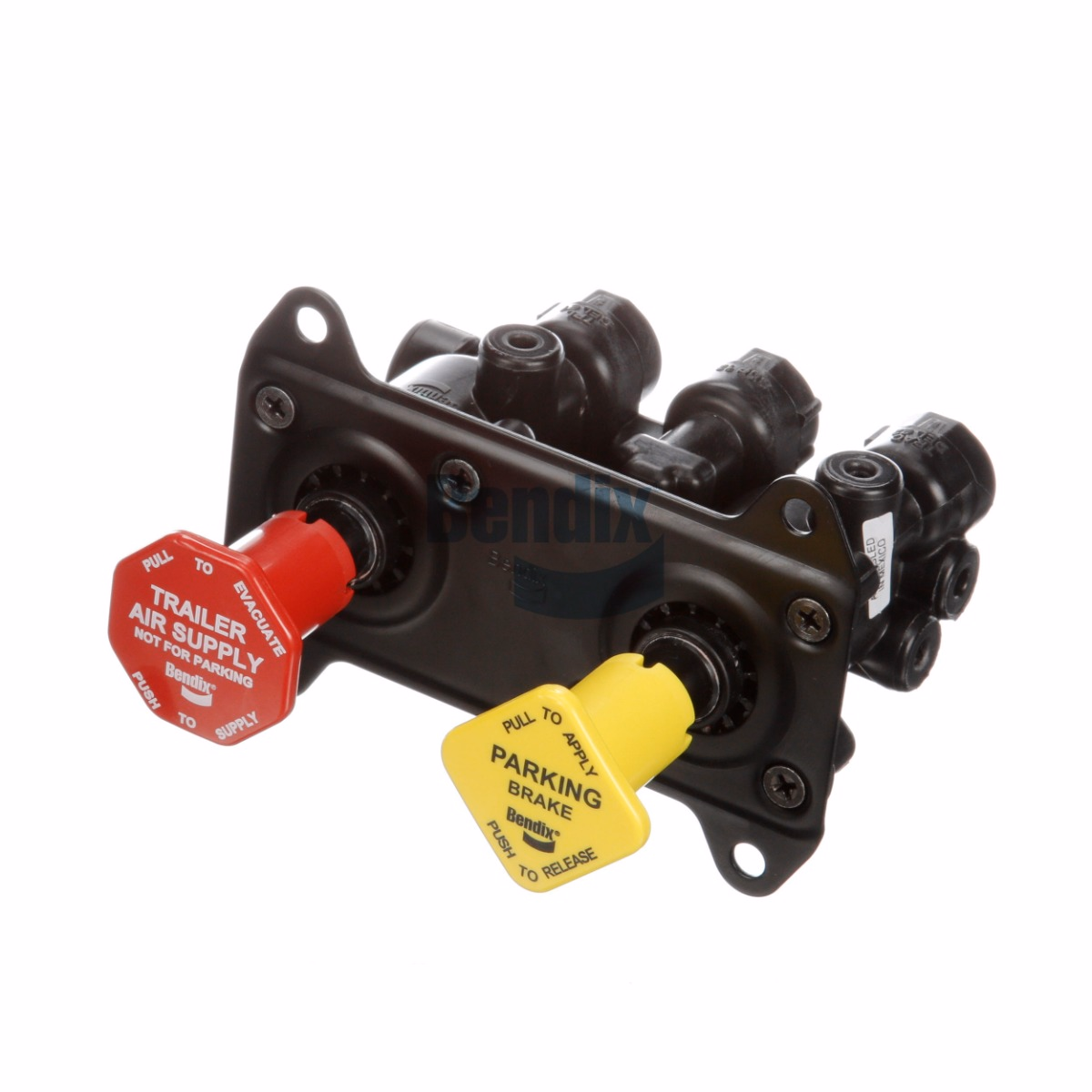

Bendix 800516 MV-3 Dash Valve

The MV-3 dash control module combines the functions of a PP-1 control valve and a PP-7 trailer supply valve together into a unified device. The Bendix MV-3 dash control module is a two button, push-pull control valve housed in a single body which includes a dual circuit supply valve and a check valve. The MV-3 valve can duplicate the functions of any existing two or three valve push-pull system and has the advantage of reduced plumbing.

• Genuine Bendix MV-3 Valve 800516
• Replaces Bendix 065157, 065697
• Volvo part number 3949799
• Replaces Volvo 3948331
• Mounting Hole Dia./Thd.0.27"

Mounting: Ø .275 IN (4x)
Supply 11 Port: 1/4-18 NPT
Supply 12 Port: 1/4-18 NPT
Delivery 21 Port: 1/4-18 NPT
Delivery 22 Port: 1/4-18 NPT
Exhaust Port: 1/4-18 NPT
Tractor Trip Pressure: 30 ± 10 PSI
Trailer Trip Pressure: 35 ± 10 PSI
Trailer Override Pressure: 25 ± 5 PSI
Button(s) Included: Yes
Maximum Operating Temperature: 200 °F (93 °C)
Minimum Operating Temperature: -40 °F (-40 °C)
