Bendix K072345 Relay Valve, ATR-6

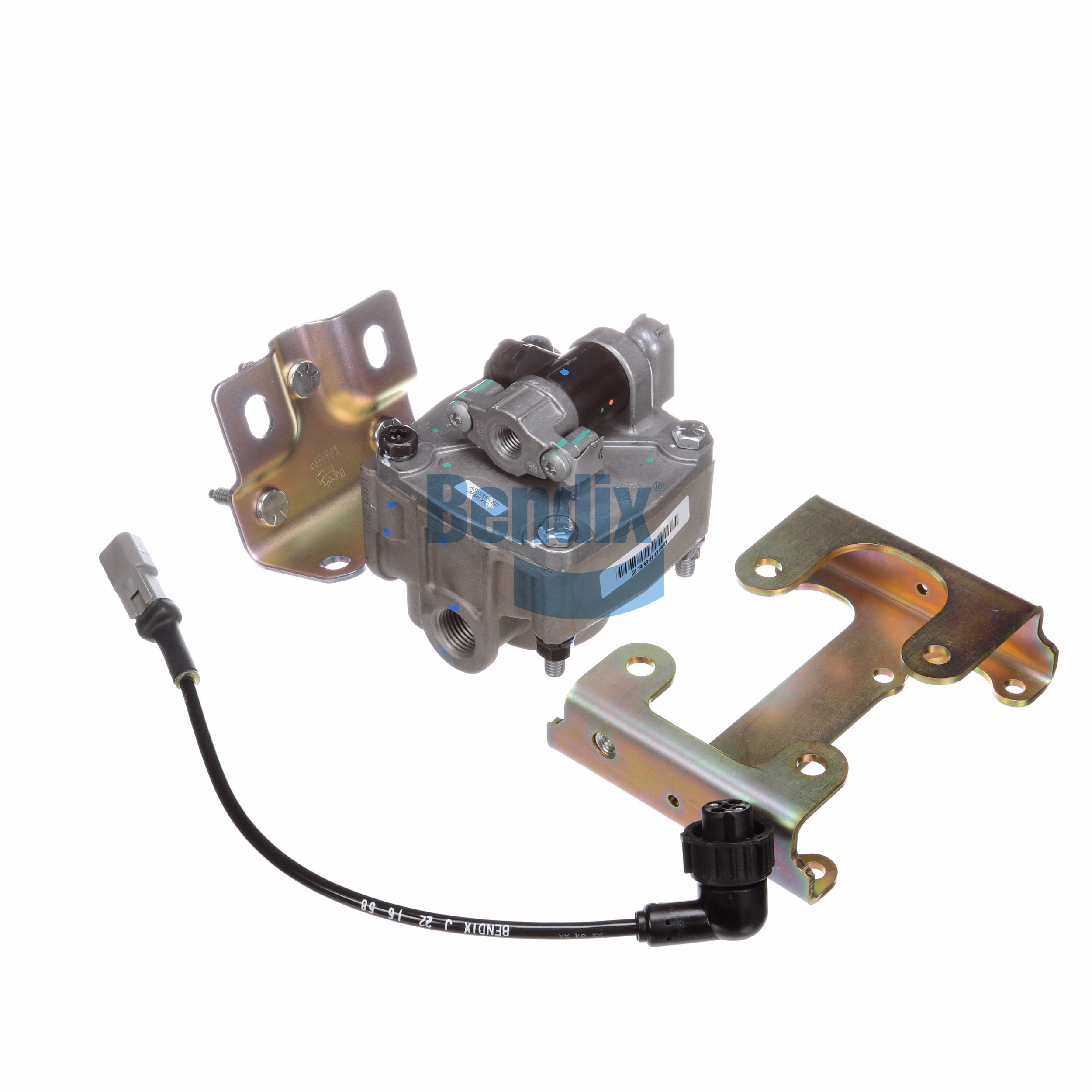

Bendix K072345 Relay Valve
- Bendix Relay Valve K072345
- Current Parts 85129932 Relay Valve (1)
- Replaces Bendix 065516
Bendix K072345 Installation Instructions
Bendix K072345 Service Data
Mounting Bracket Location Multiple brackets loose in box
Connector Type 2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Adapter Cable Included - 2-Pin DIN (90°) to 2-Pin Deutsch DT06-2S
Body Configuration - 2 SUP / 4 DEL (2H + 2V)
Supply Port 1 - 1/2-14 NPT
Supply Port 2 - 1/2-14 NPT
Internal Supply Passage to Cover - Yes
Control Port - 1/4-18 NPT
Control Port Orientation (CW from Front Face) - 90°
Delivery Port 1 - 1/2-14 NPT
Delivery Port 2 - 1/2-14 NPT
Delivery Port 3 - Closed Port
Delivery Port 4 - Closed Port
Exhaust Port - Dust Shield
Crack Pressure - 4.0 PSI
TMC Washer - RV040
Voltage (Nominal) - 12 Volts
Maximum Operating Temperature -185 °F (85 °C)
Minimum Operating Temperature - -40 °F (-40 °C)
Cautionary Note(s) - Use caution when positioning solenoid connector.
