Con Met Hub 10082221
$807.96
$807.96
*30.03% Savings
$565.34
Con Met Hub 10082221. R Drive Axle Aluminum PreSet Hub Assembly is ConMet factory-assembled to include bearings that adhere to our proprietary bearing specification, bearing spacer, and wheel seal that together provides a hub assembly that is set for optimal bearing clearance to ensure the longest life. PreSet assemblies are a simple torque-to-spec and lock system, minimizing the potential for improper installation
Con Met Hub 10082221
- Material: Aluminum
- Axle Position: Drive
- Axle Spindle: R
- Assembly Type PreSet
- Compatible Brake Type Drum
- Hub Mounting System HP10
- Wheel Stud Standout (Inches) 3.81
- Wheel Material Aluminum
- Barrel Length Short
- Mounting: Hub Piloted - 10 Studs
- ABS: Yes, Has Stamped ABS Ring
- Wheel Stud Bolt Circle Diameter: 285.75 mm
- Wheel Stud: 10001331
- Hub Rating: 11,500 LBS 5,216 kg
- Drum Pilot Diameter: 8.78"
- Bearing Set: ½-stand
- Fill Hole: 9/16”-18 UNF — #6 SAE J1926
- ABS Offset: 2.33"
- Hub Offset: 1.31"
- Axle Stud Standout: 1.75"
- Axle Stud Diameter: 3/4”
- Machining 10001419
- Machined Flange Thickness: 1.34"
- Casting: 10009779
- Casting Material: A356.0-T61 Aluminum
- Seal Vendor: SKF
- Volvo part 85150212
- Replaces Con Met 10004003, 10001494
- Replaces Volvo 20478407, 20478408, 20499459, 85143669
Related Products

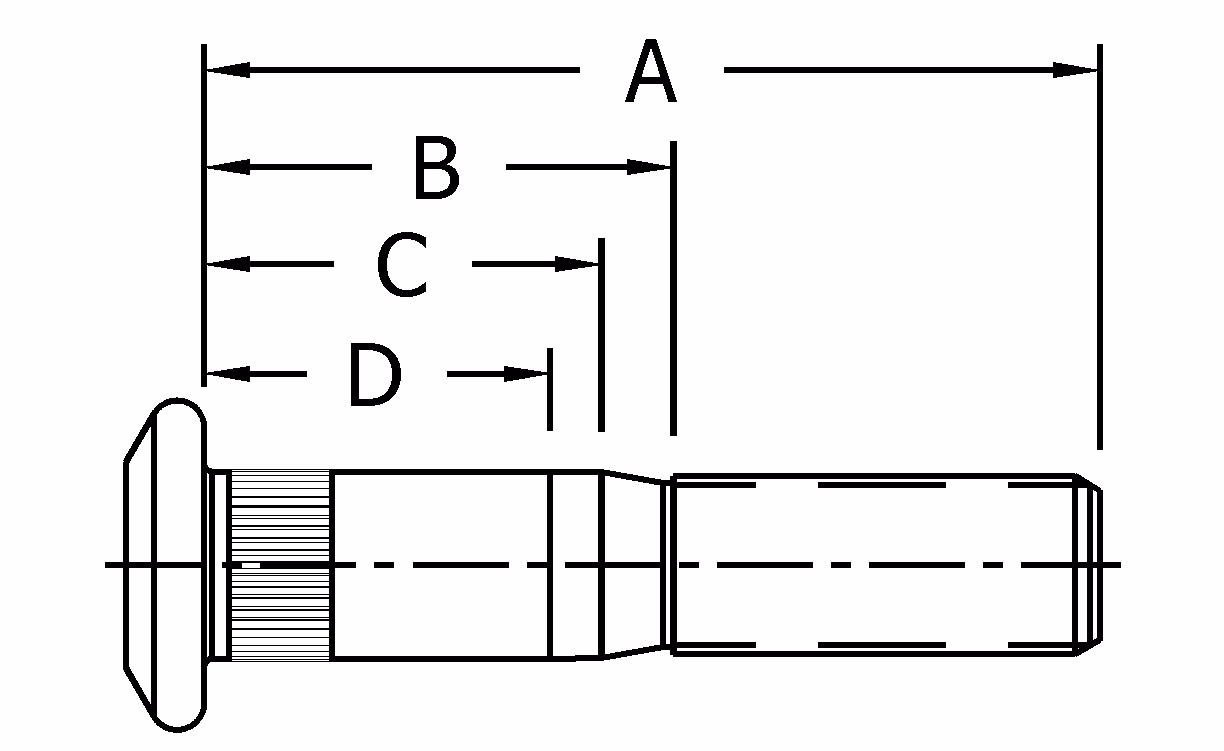

Con Met 10001331 Wheel Stud Metric M22 X 1...
