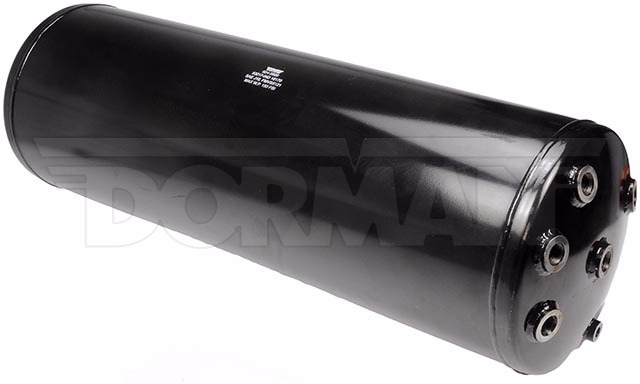

Dorman 924-5800 Air Tank Assembly. Same as International 3832978C1
$290.21
Maintain the effectiveness of air-actuated braking and suspension systems by replacing a corroded or leaking air tank with a new reservoir. Designed to fit like the original equipment tank with same port configurations.
- Dorman 924-5800 Air Tank Assembly
- Same as International 3832978C1
- Application Summary: International 2015-10
- Direct replacement - this air reservoir features the same port configuration and physical dimensions as the original tank
- Quality construction - this tank is made with precise port locations and finished in a corrosion-resistant coating inside and outside
- Validation tested - has been salt spray chamber tested internally and externally to meet or exceed industry standard for corrosion resistance
- Excellent value - original equipment quality at a lower cost
- Color: Black
- Diameter: 11.25 In.
- Length: 34 In.
- Material: Carbon Steel
- Material Thickness: 0.13 In.
- Maximum Working Pressure: 150 PSI
- Mounting Hardware Included: No
- Mounting Hole Quantity: 0
- Mounting Type: Strap
- Port Quantity: 6
- Port Thread Diameter: M22; M22; M22; M22; M22; 1/4 In.
- Port Thread Pitch: 1.5 mm; 1.5 mm; 1.5 mm; 1.5 mm; 1.5 mm
- Port Threads Per Inch: NPT
- Tank Chamber Quantity: 1
- Threaded Mounting Bracket Included: No
- Valve Included: No
- Volume: 52 L
Product Specifications
