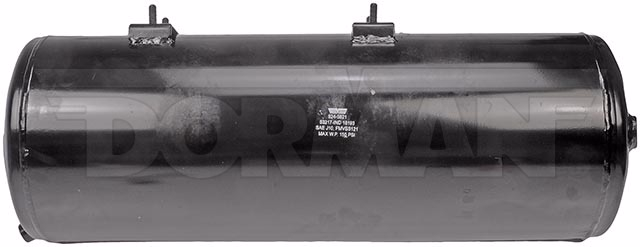

Dorman 924-5821, Air Tank Assembly. Same as Volvo 20710793

Skip to the end of the images gallery
Skip to the beginning of the images gallery
Be the first to review this product
$283.70
Maintain the effectiveness of air-actuated braking and suspension systems by replacing a corroded or leaking air tank with a new reservoir. Designed to fit like the original equipment tank with same port configurations.

Dorman 924-5821, Air Tank Assembly. Same as Volvo 20710793

$283.70
Details More Information Reviews
  • Dorman 924-5821, Air Tank Assembly
  • Same as Volvo 20710793
  • Application Summary: Volvo 2018-01
  • Direct replacement - this air reservoir features the same port configuration and physical dimensions as the original tank
  • Quality construction - this tank is made with precise port locations and finished in a corrosion-resistant coating inside and outside
  • Validation tested - has been salt spray chamber tested internally and externally to meet or exceed industry standard for corrosion resistance
  • Excellent value - original equipment quality at a lower cost

Product Specifications

  • Color: Black
  • Diameter: 10 In.
  • Length: 29.5 In.
  • Material: Carbon Steel
  • Material Thickness: 0.13 In.
  • Maximum Working Pressure: 150 PSI
  • Mounting Bracket Thread Diameter: M10
  • Mounting Bracket Thread Pitch: 1.5 mm
  • Mounting Hardware Included: No
  • Mounting Hole Quantity: 0
  • Mounting Type: Strap On; Bolt-On
  • Port Quantity: 4
  • Port Thread Diameter: M22; M22; M22; 1/4 In.
  • Port Thread Pitch: 1.5 mm; 1.5 mm; 1.5 mm
  • Port Threads Per Inch: NPT
  • Tank Chamber Quantity: 1
  • Threaded Mounting Bracket Included: Yes
  • Valve Included: No
  • Volume: 35 L

    • Related Products

    Image 1

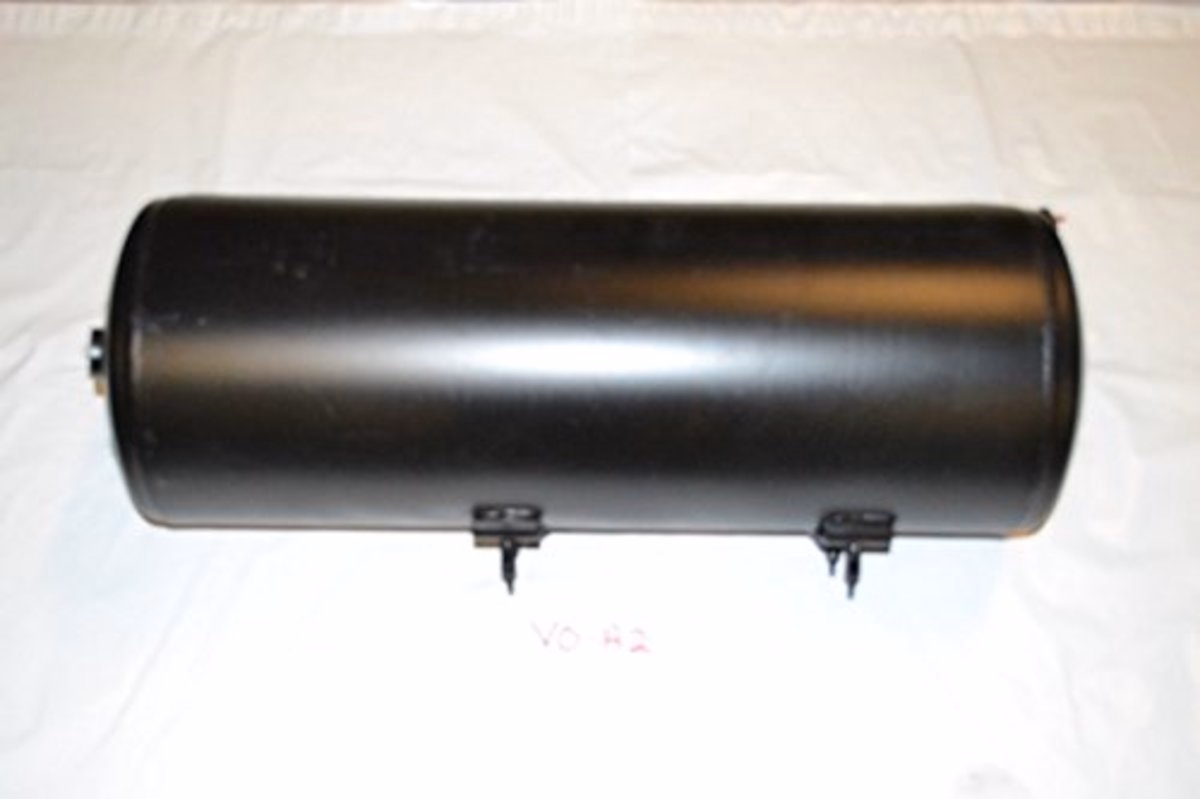

    Volvo Truck 20710793 Air Tank
