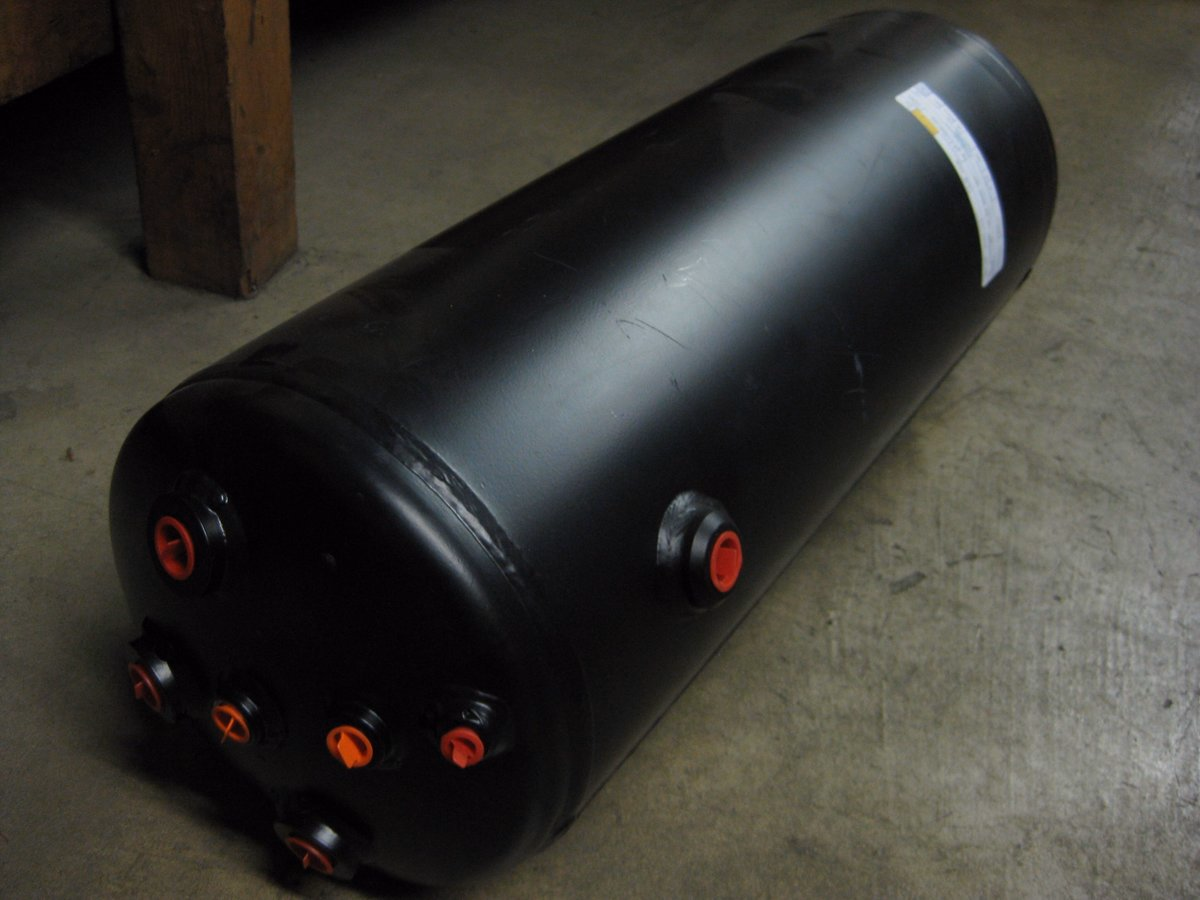

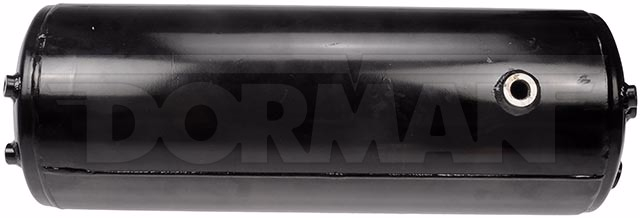

Dorman 924-5825 Air Tank, Same as Volvo 22945941
$216.23
Maintain the effectiveness of air-actuated braking and suspension systems by replacing a corroded or leaking air tank with a new reservoir. Designed to fit like the original equipment tank with same port configurations.
- Direct replacement - this air reservoir features the same port configuration and physical dimensions as the original tank
- Quality construction - this tank is made with precise port locations and finished in a corrosion-resistant coating inside and outside
- Validation tested - has been salt spray chamber tested internally and externally to meet or exceed industry standard for corrosion resistance
- Excellent value - original equipment quality at a lower cost
Product Specifications
- Color: Black
- Diameter: 10 In.
- Length: 29 In.
- Material: Carbon Steel
- Material Thickness: 0.13 In.
- Maximum Working Pressure: 150 PSI
- Mounting Bracket Thread Diameter: M10
- Mounting Bracket Thread Pitch: 1.5 mm
- Mounting Hardware Included: No
- Mounting Hole Quantity: 0
- Mounting Type: Strap On; Bolt-On
- Port Quantity: 9
- Port Thread Diameter: 1/4 In.; M16; M22; 1/4 In.; M22; M22; M22; M16; M16
- Port Thread Pitch: 1.5 mm; 1.5 mm; 1.5 mm; 1.5 mm; 1.5 mm; 1.5 mm; 1.5 mm
- Port Threads Per Inch: NPT; NPT
- Selling Package Quantity UOM: Piece
- Tank Chamber Quantity: 1
- Threaded Mounting Bracket Included: Yes
- Valve Included: No
- Volume: 35 L
- Same as Volvo Truck 22945941, 21235929, 20462250, 20946679
