ECCO Back Up Alarm 510

$34.26
$27.90

ECCO Back Up Alarm 510

$34.26
$27.90

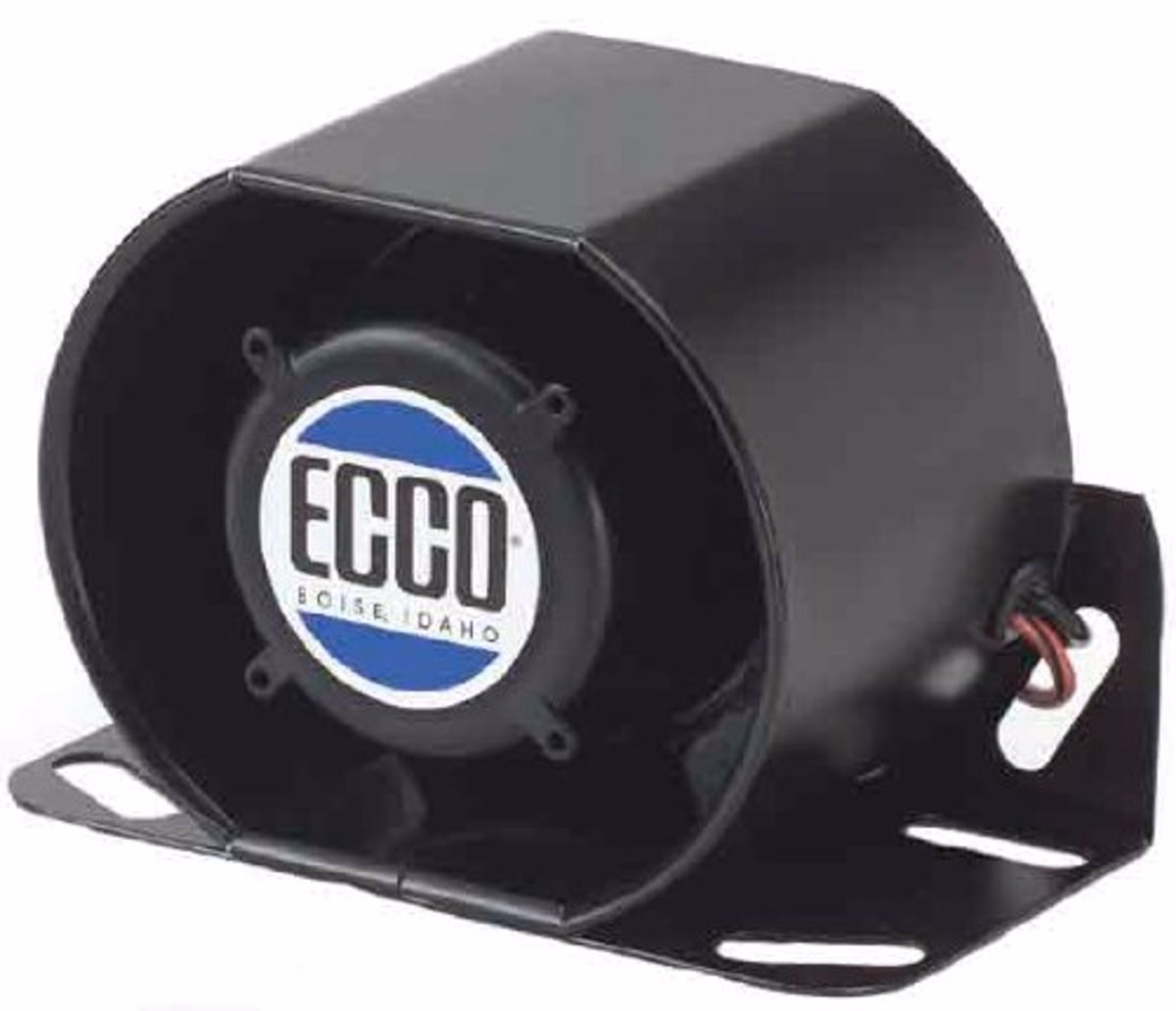

ECCO Backup Alarm 510, 97 dB(a). 12 VDC, 0.2 amps. Compact size and universal mounting bracket maximizes location options, self-grounding with stud terminal connections, sealed in epoxy for protection against dust, moisture, and vibration.
  • Voltage 12 VDC
  • Volume 97 db
  • Amps 0.2
  • Type Speaker -
  • Warranty 2 Years
  • Approval SAE J994 Type F, UL, CE, e, R10, IP65
  • Temperature Range -40F to +185F

Alarm Specifications:

Connection: 8-32 uni stud connection
Fiberglass reinforced nylon housing
Recommended mounting bolt:  1/4” Grade 5
Recommended washer:  1/4” Type A, Series N or W
Recommended mounting torque:  76 in. lbs.




ECCO 510 Technical Drawing
