Horton 79A94982 Clutch, DM Advantage Two-Speed Reman
$1,591.08
Fan Hub DMA 2 Speed 79A94982 | Horton
Same as Mack 85130082
CLUTCHDMA2S SE 21REMAN
DM Advantage Two-Speed Reman: 79A9498-2

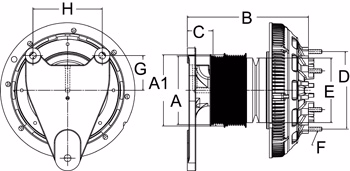

| DISPLAY | VALUE NAME | DIMENSION |
|---|---|---|
| A | Back Pulley Diameter | 5.04 |
| A1 | Front Pulley Diameter | 5.23 |
| B | Overall Length | 9.43 |
| CL3 | Belt Configuration | 6K, 10K, 1V |
| C | Belt Groove Location | 3.09 |
| D | Bolt Circle | 3.50 |
| E | Fan Pilot Diameter | 2.56 |
| F | Fan Blade Stud Length | 1.07 |
| F1 | Stud Thread Size | .312-18 UNC 2A |
| G | Vertical Mounting Distance | 2.69 |
| H | Horizontal Mounting Distance | 5.39 |
| J | Center Of Jb To Top Right Mounting Hole | 2.69 |
| TMfg | Truck Manufacturer | MACK |
- Horton: 989498, 999357, 999477, 999498, 79A9498-2, HOR79A94982, 3912-79A94982
- Mack: 85130082, 40MH418BM, 40MH444M, (service) 40MH418AM
