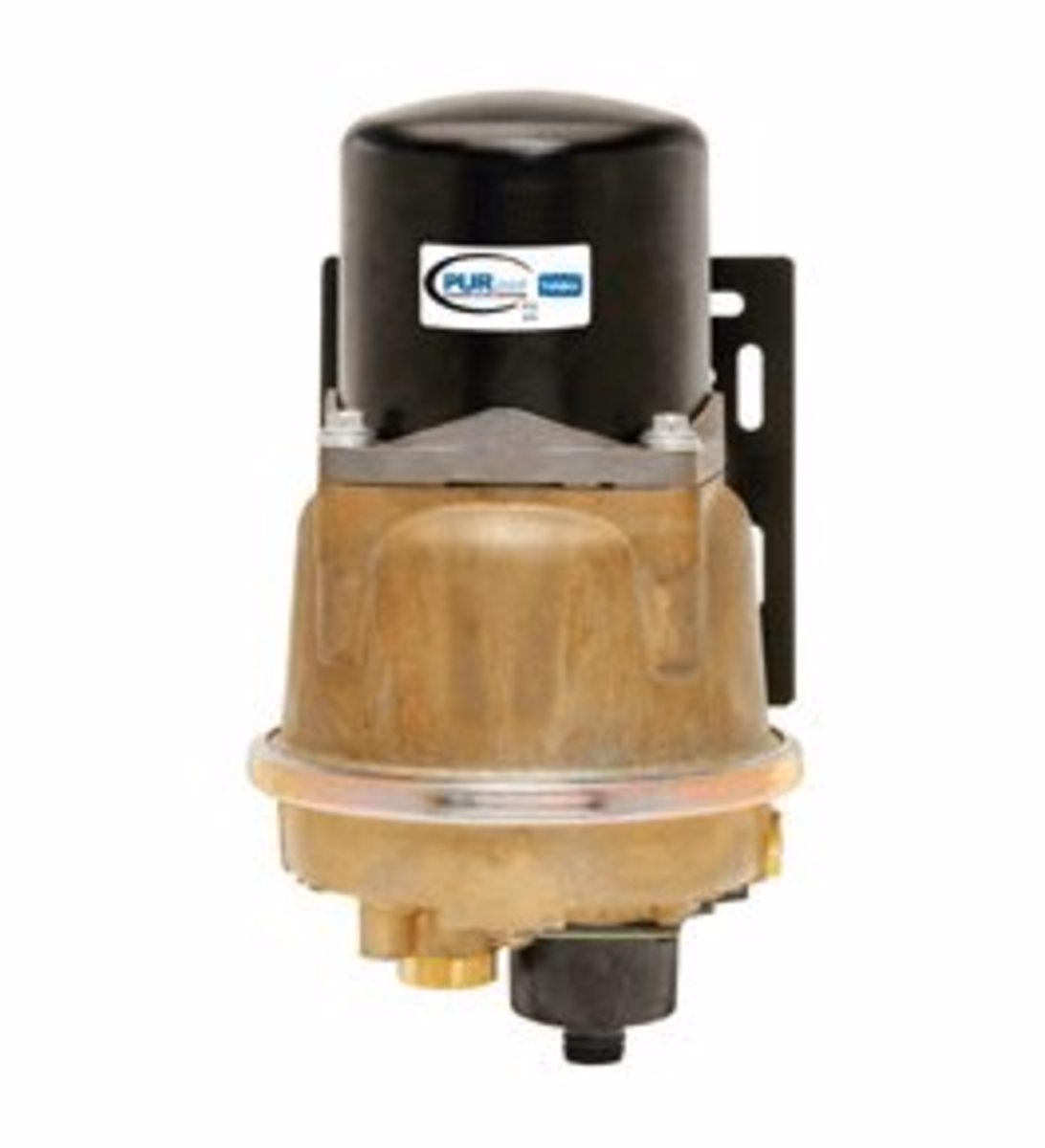

Haldex Midland DA34100 Air Dryer
$571.88
Genuine Haldex Midland Air Dryer DA34100.
- Multi-Treatment Cartridge employs 5 stages of cleaning to ensure dry system air.
- Universal mounting bracket eases retro-fit installations. Fits Pure Air Plus, DRYest, AD type and SS type air dryer bolt patterns.
- Integrated turbo protection.
- Built-in heater prevents freezing and damage to the dryer.
Genuine Haldex Midland Air Dryer DA34100. OEM N4253AA. Multi-Treatment Cartridge employs 5 stages of cleaning to ensure dry system air. Universal mounting bracket eases retro-fit installations. Fits Pure Air Plus, DRYest, AD type and SS type air dryer bolt patterns. Integrated turbo protection. Built-in heater prevents freezing and damage to the dryer.
- Purest Air Dryer DA34100
- Fits in 17-3/4" x 9-3/4" x 9-1/2" Envelope. Includes 1/2" Clearance Needed for D
- Includes 1/2" Clearance Needed for Desiccant Cartridge Change
- With Bracket
- Inlet Port - Left
- Crosses to Volvo 85106819, 3919027, 8088458, 8077763
TECHNICAL SPECS
Heater | 12 Volt |
Notes | 1/8" Control Port with Bracket, Inlet Port - Left |
OEM Part Number | N4253AA |
Stages of Drying | 5 |
Internal Purge Volume | 210 cu. in. |
Inlet Air Temperature | - 40°F to +175°F |
Maximum Working Pressure | 150 psi |
Safety Relief Pressure | 175 psi |
Secondary Pressure Protection | 235 psi |
12, 24 Volt Heater | 95W |
Flow Capacity | 34 SCFM |
Desiccant Cartridge | 3.5 lbs. |
Assembly Weight | 22.0 lbs. |
Integrated Turbo Protection Pressure Drop | 2 psi @ 15 SCFM/120 psi |
