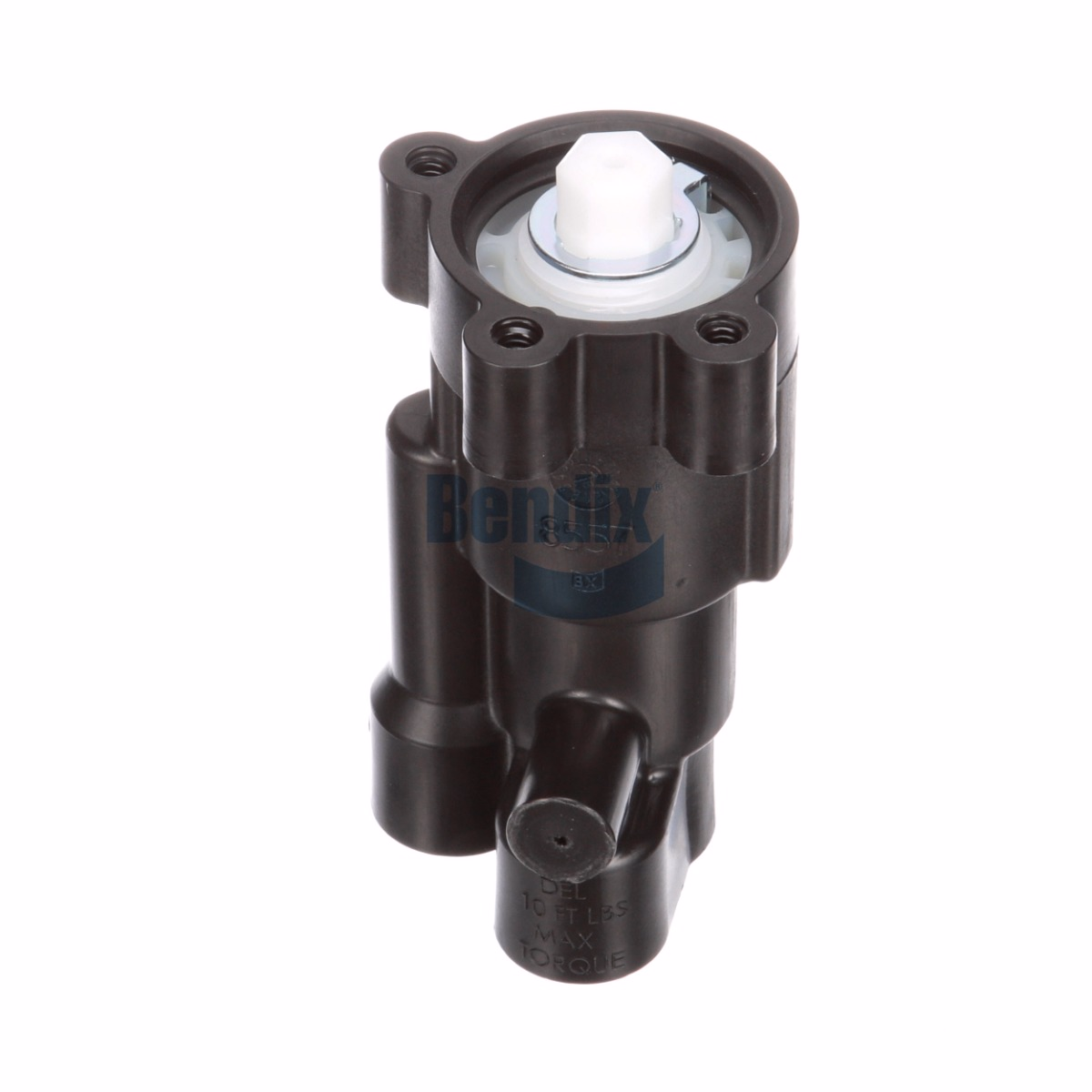

Bendix 102707 TC-7 Trailer Control Valve

Technical Attributes Guide

Product Type:  Positioning
Mounting Location:  Column Mount
Mounting:  1/4-20 UNC-2B (3x)
Supply Port:  1/4-18 NPT
Delivery Port:  1/4-18 NPT
Exhaust Port:  1/4-18 NPT
Graduating Pressure Range:  5 - 80 PSI
Final Delivery Pressure:  80 PSI
Total Cam Follower Travel:  50° CW
Reverse Cam:  No
Body Material:  Plastic
Maximum Operating Temperature: 200 °F (93 °C)
Minimum Operating Temperature:  -40 °F (-40 °C)
