Con Met 10082216 Hub, Rear

Genuine Con Met PreSet Hub Assembly CM 10082216

• Volvo part number 85150207
• Replaces Volvo 85137018, 25171572, 25166588
• Axle Location: Drive
• Axle-Specific Specification: Long Barrel
• Hub Piloted - 10 Studs
• ABS: Yes, Has Stamped ABS Ring
• Wheel Stud Bolt Circle Diameter 285.75 mm
• Wheel Stud 10001329
• Wheel Stud Standout 2.94"
• Hub Rating 11,500 LBS 5,216 kg
• Drum Pilot Diameter 8.78"
• Bearing Set ½-stand Premium
• Fill Hole 9/16”-18 UNF — #6 SAE J1926
• ABS Offset 2.33"
• Hub Offset 1.31"
• Axle Stud Standout 1.75"
• Axle Stud Diameter 5/8”
• Machining 10031183
• Machined Flange Thickness 1.34"
• Casting 10001280
• Casting Material A356.0-T61 Aluminum
• 10080122 SEAL, PRESET CONMET PREMIUM
• 10033404 BEARING SPACER STEEL
• 10041914 CONE, BEARING - OUTBOARD 1/2-STAND; STEEL (PREMIUM)
• 10041912 CONE, BEARING - INBOARD 1/2-STAND; STEEL (PREMIUM)
• 105272 #6 OIL PORT PLUG MILD STEEL
• 103705 RING, ABS MILD STEEL
• 103430 STUD, DOUBLE-ENDED 5/8"-11UNC / 5/8"-18UNF

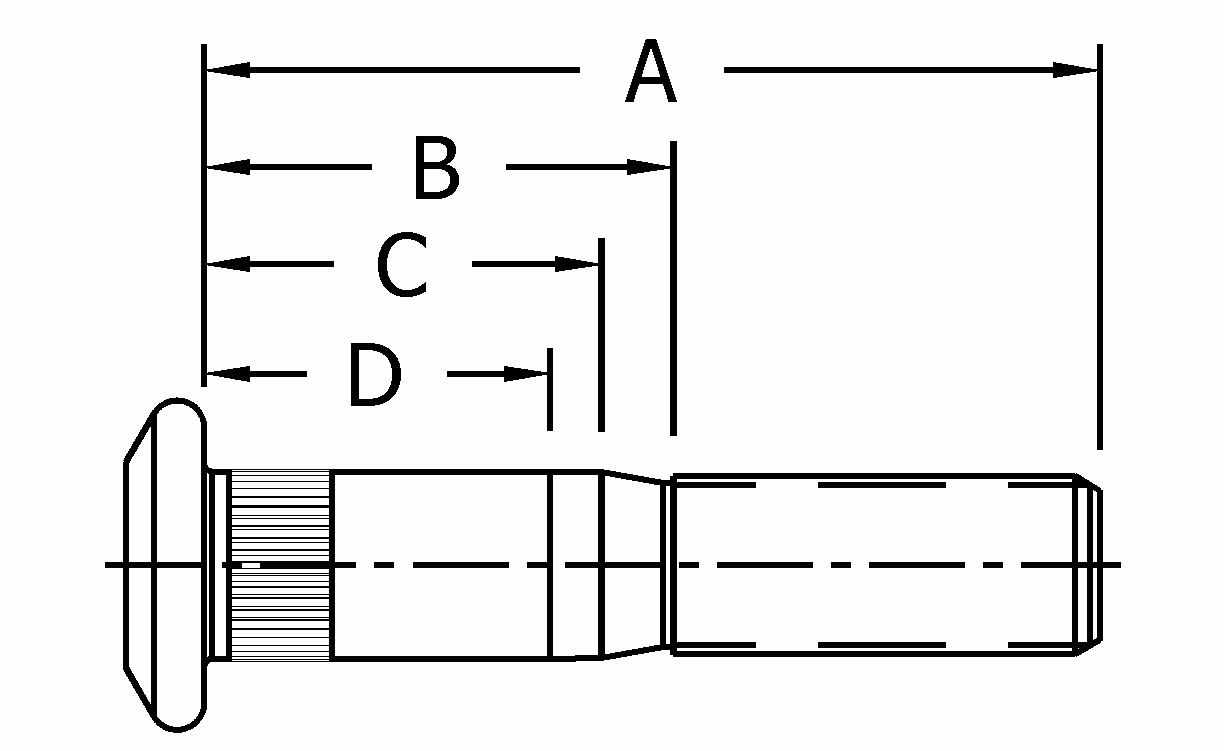

• 10001329 STUD, WHEEL - PROP CL 10.9 M22 X 1.5MM X 4.28 LG
• 10041913 CUP, BEARING - OUTBOARD 1/2-STAND; STEEL (PREMIUM)
• 10041911 CUP, BEARING - INBOARD 1/2-STAND; STEEL (PREMIUM)
