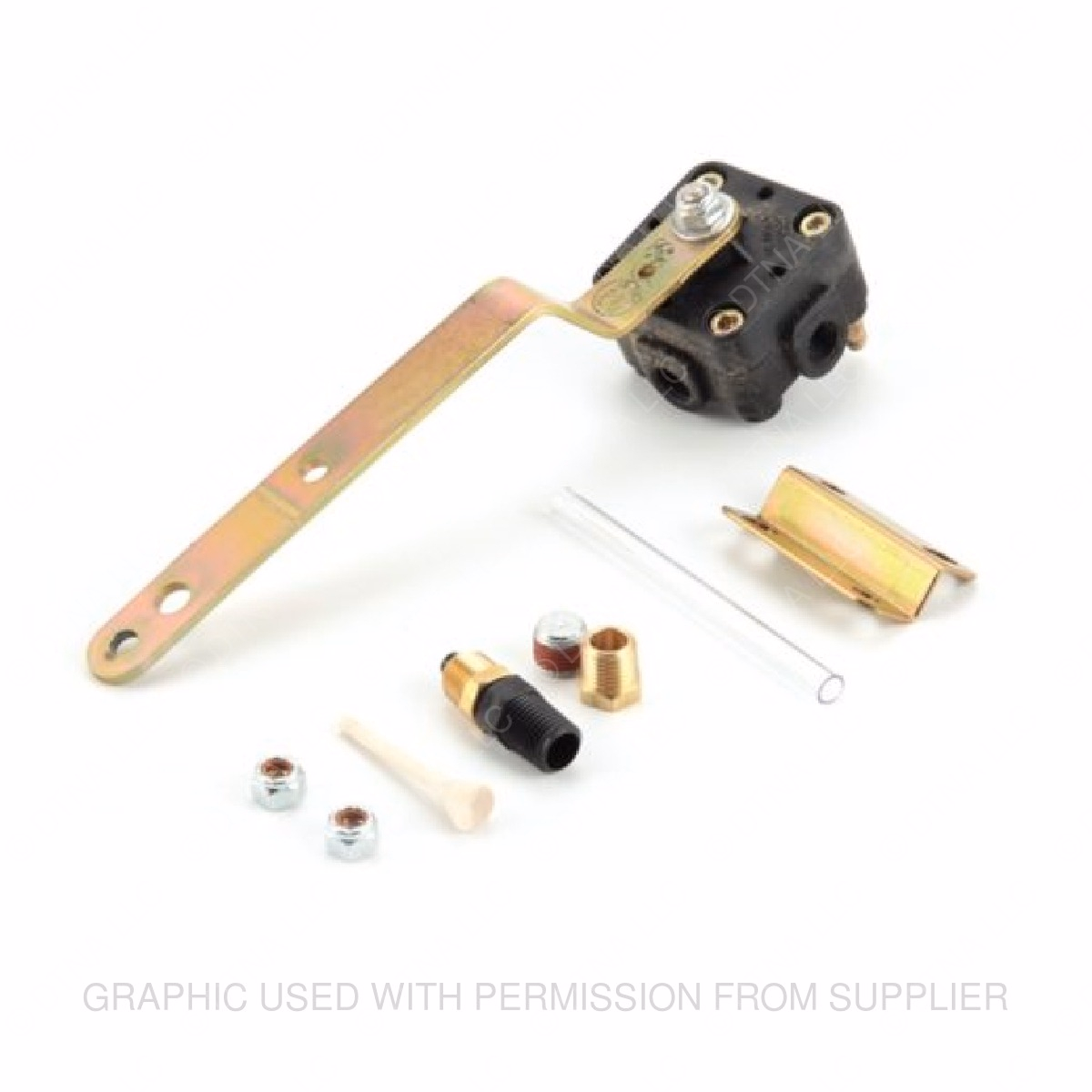

Hendrickson VS227 Height Control Valve
$93.76
$93.76
*25.81% Savings
$69.56
Hendrickson's non-delay Height Control Valve delivers twice the airflow of comparably sized valves for quicker air up, better response after dump, and faster exhaust delivering greater stability during loading and unloading. The tuned dead band and porting minimizes air consumption while improving the overall suspension system response. Available with an integral air-dump feature.
Genuine Hendrickson VS-227 Height Control Valve
Operating pressure – 130 psi (9 bar) maximum
Operating temperature – -40ºF to +150ºF (-40ºC to +65ºC)
Maximum flow rate – 350 L/Min (12.4 cfm)
Delivery ports – ¼-inch NPT fittings – Dual delivery ports
Maximum handle movement – +/- 75º for fill or exhaust
Options – Air fittings – Mounting brackets
Dead Band – +/- 2º
Arm Length: 7.38 in
Port Thread Size: 0.25 NPT in
Freightliner HDR VS 227 Mack 8446-VS227
Operating pressure – 130 psi (9 bar) maximum
Operating temperature – -40ºF to +150ºF (-40ºC to +65ºC)
Maximum flow rate – 350 L/Min (12.4 cfm)
Delivery ports – ¼-inch NPT fittings – Dual delivery ports
Maximum handle movement – +/- 75º for fill or exhaust
Options – Air fittings – Mounting brackets
Dead Band – +/- 2º
Arm Length: 7.38 in
Port Thread Size: 0.25 NPT in
Freightliner HDR VS 227 Mack 8446-VS227
