Horton 791073 HT/S Advantage Fan Drive
Horton 791073 Fan Drive
Your engine needs to stay at an optimal cooling temperature to avoid overheating. For this, engines rely on active fan clutches to perform the job. If your semi-truck is showing signs of overheating or with decreased power, it could be signs of a failing fan clutch. When in need of fan clutch replacement, turn to Horton!
This HT/S Advantage reman fan clutch is designed for Volvo trucks (1998 - 2001) with ISX, N14, and VE D12 engines. It contains a bolt circle dimension of 3.5 inches; a stud length of 1.00 (.375-24) and a pilot diameter of 2.56 inches. It contains a back pulley diameter measurement of 6.77 inches and an overall length of 6.09 inches. Its belt configuration is a 10K and belt groove location is a 1.4. Vertical mounting distance measures 3.27 inches and horizontal mounting distance measures 3.63 inches.
Horton 791073 Fan Drive. Service 997045, OEM 987035. HT/S Advantage
- Horton 791073 Fan Drive
- Horton OEM # 987035

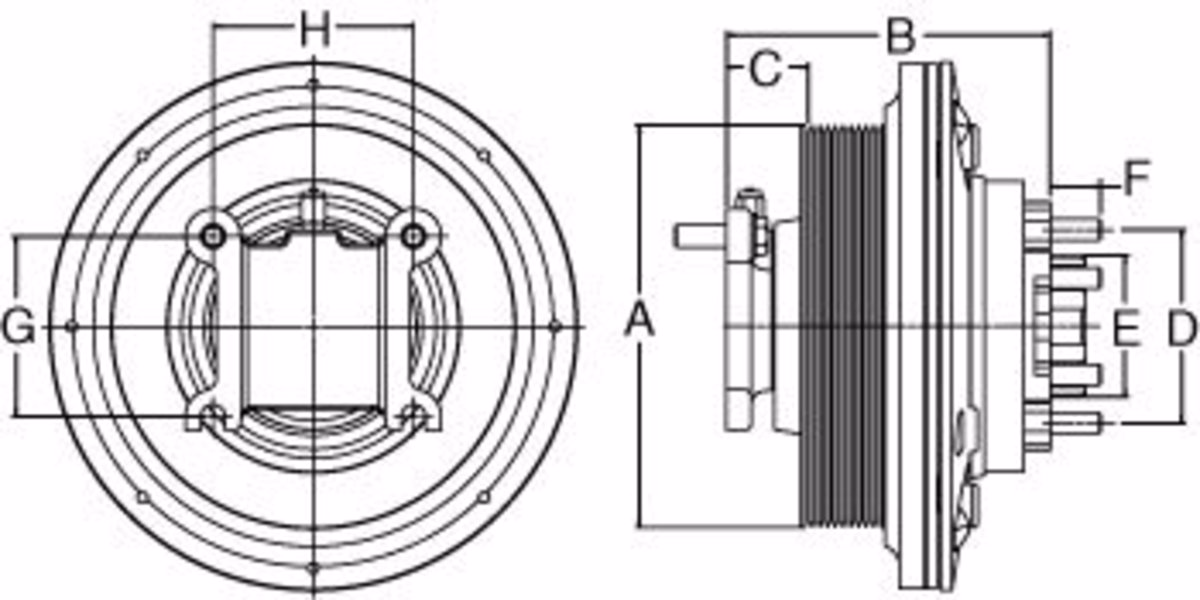

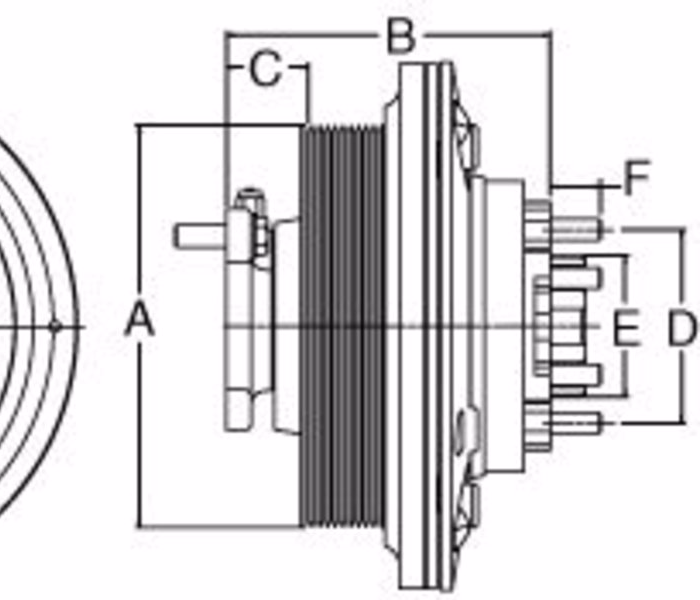

- A - Back Pulley Diameter - 6.77
- B - Overall Length - 6.09
- BC - Belt Configuration - 10K
- Volvo part number 85108783
- Replaces Volvo 20353628, 3164795
- Designed for Volvo trucks (1998 - 2001) with ISX, N14 and VE D12 engines
- Bolt circle dimension of 3.5 inches
- Stud length of 1.00 (.375-24)
- Pilot diameter of 2.56 inches
- Back pulley diameter measurement of 6.77 inches
- Overall length of 6.09 inches
- Belt configuration is a 10K
- Belt groove location is a 1.4
- Vertical mounting distance measures 3.27 inches
- Horizontal mounting distance measures 3.63 inches
Core Returns: This Horton Factory remanufactured fan clutch has a core charge. After you return the good fan clutch core to us we can refund this core charge after inspection. When your core is received, we will issue your core credit back to your original payment method.
