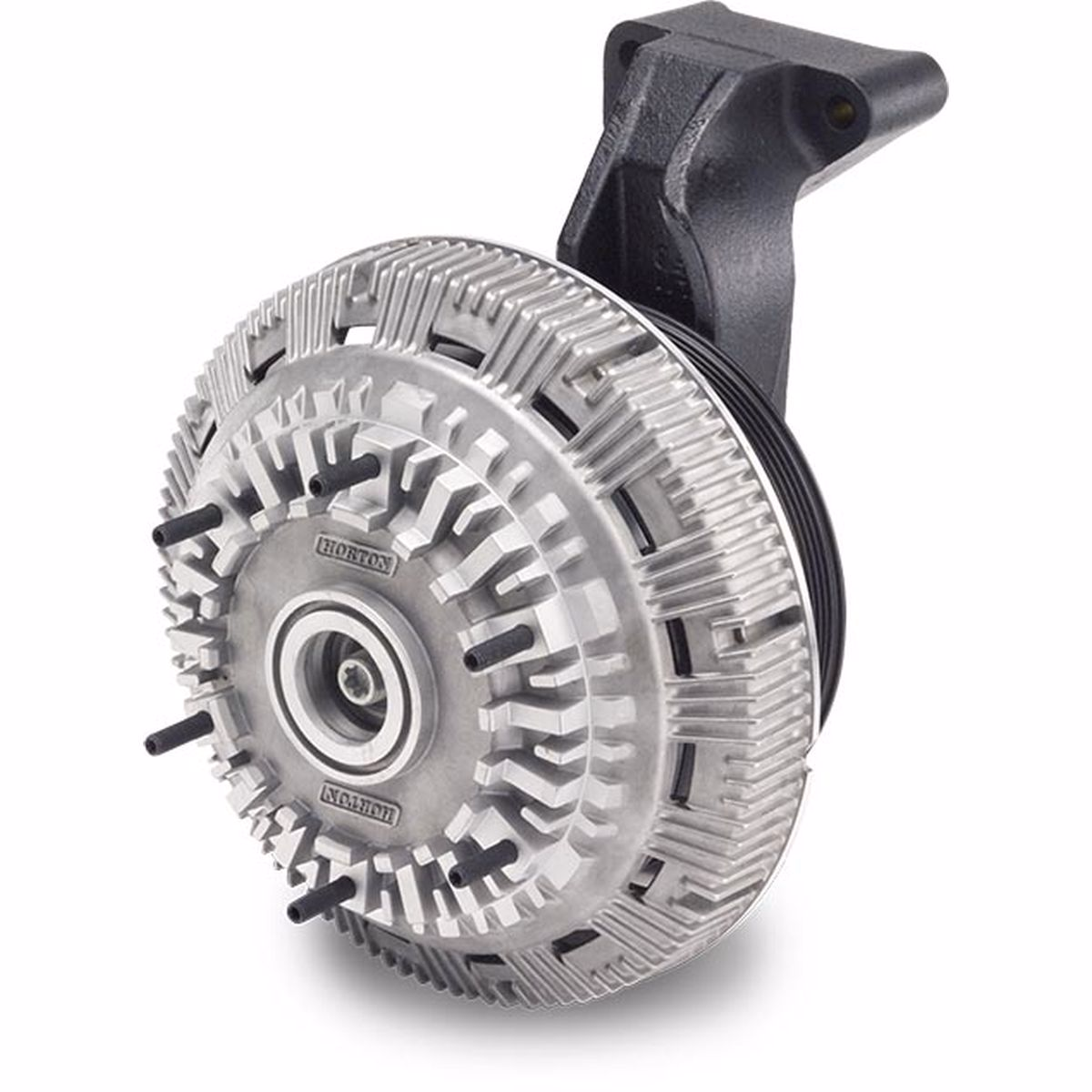

Horton 79A96442 Fan Clutch
$1,623.55
Horton 79A96442 Fan Clutch DM Advantage Two-Speed Reman
- Horton Fan Clutch 79A96442
- Reman for 22113077
- Volvo part number 85139329
DM Advantage Two-Speed Reman: 79A9644-2
Horton Service # 79A9644-2
Horton OEM # 98A9644-2
Old Service # 79A9552-2, 99A9552-2
This product can be used as a replacement part for:
Borgwarner 21210845, Kit-Masters 24-465CK, Mack 21596045, Mack 40MH4103M, Mack 22113077, Volvo 21192240, Volvo 20883819, Volvo 85115602, Volvo 21596045, Volvo 22113077, Volvo 85139329, Volvo 21925087
Dimensions:
| DISPLAY | VALUE NAME | DIMENSION |
|---|---|---|
| A | Back Pulley Diameter | 7.87 |
| A1 | Front Pulley Diameter | 0.00 |
| B | Overall Length | 6.13 |
| CL3 | Belt Configuration | 12PK |
| C | Belt Groove Location | 1.48 |
| D | Bolt Circle | 3.50 |
| E | Fan Pilot Diameter | 2.56 |
| F | Fan Blade Stud Length | 1.07 |
| F1 | Stud Thread Size | 3/8 |
| G | Vertical Mounting Distance | 7.21 |
| H | Horizontal Mounting Distance | 6.73 |
| J | Center Of Jb To Top Right Mounting Hole | 4.39 |
| TMfg | Truck Manufacturer | MACK, VOLVO |
