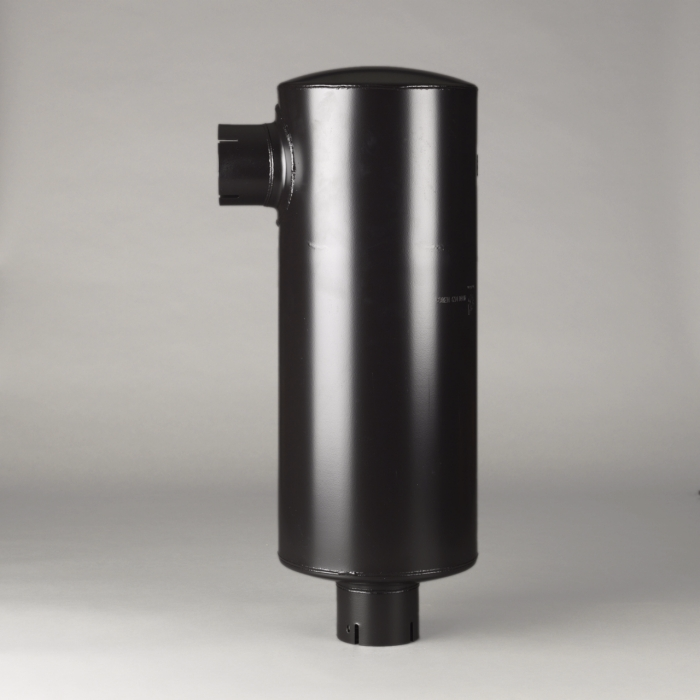

Donaldson M101169 Muffler, Round Style 3
$587.39
$587.39
*6.9% Savings
$546.86
Muffler 2191-M101169 - Mack Truck
Mack Truck 2191-M101169 - Muffler
Attributes
| Inlet Diameter | 4.02 inch (102.11 mm) |
| Outlet Diameter | 4.02 inch (102.11 mm) |
| Body Diameter Maximum | 10.08 inch (256 mm) |
| Body Length | 23.75 inch (603.2 mm) |
| Overall Length | 29.22 inch (742.2 mm) |
| Rated Flow LR | 1127 cfm (31.9 m³/min) |
| Rated Flow MR | 1568 cfm (44.4 m³/min) |
| Rated Flow HR | 1999 cfm (56.6 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.01 inch Hg (51 mm Hg) |
| Attenuation LR | 12 dBA |
| Attenuation HR | 18 dBA |
| Inlet Clock Position | 6:00 |
| Style | Style 3 |
Other Information
| Country of Origin | United States |
| NMFC Code | 125850-08 |
| HTS Code | 8708925000 |
| UPC Code | 74233011401 |
