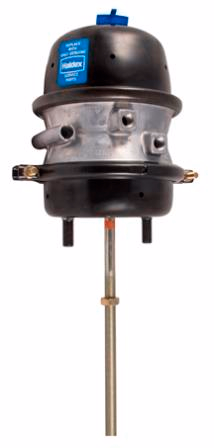

Mack Truck 5396-GC2424L Brake Chamber

Mack Truck 5396-GC2424L - Brake Chamber Goldseal 24

Replaces Mack:

• 25053044
• 25055822
• 25063965
• 25067547
• 3398-GC2424L
• 5396-MA15440
• 5396-2424008

Combination - Long Stroke - Size 2424

• Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue
• Double O-ring Centerseal; Two o-rings for positive sealing and plastic bearings for long life
• World Class Diaphragm; High-quality rubber compound, resistant to heat and cold; Superior flexibility even at -40°F
• Rugged Service Housing; 9 gauge steel, powder-coated
• Orange Alert® Stroke Indicator
• Self-piloting Dust Shield
• Sizes to fit all drum brake applications

Notes

1. A = Length from mounting bracket to end of Spring Housing - 9.3", 235mm
2. B = Length of Piggyback - 6.8", 172mm
3. C = Dimension at rolled Spring Housing flange - 7.5", 191mm
4. D = Dimension at Service Clampband - 9.4", 239mm
5. E = Stud Spacing 4.75 in. (120.7mm)
6. J = Pushrod Length from face of Service Housing - 10.00"
7. K = Distance to Clevis Pin centerline from face of Service Housing
8. S1 = Service Clampband position (0°)
9. T = Air Port position (90°)
10. Stud Type: 5/8-11 UNC Grade 5
    Stud Length: 1.50 in. (38.1mm)
    Pushrod Thread: 5/8-18 UNF
    Air Port Threads: 3/8-18 NPTF
    Maximum Air Pressure: 150 psi
11. Replaces 2424008, 52424008 and MA15440
