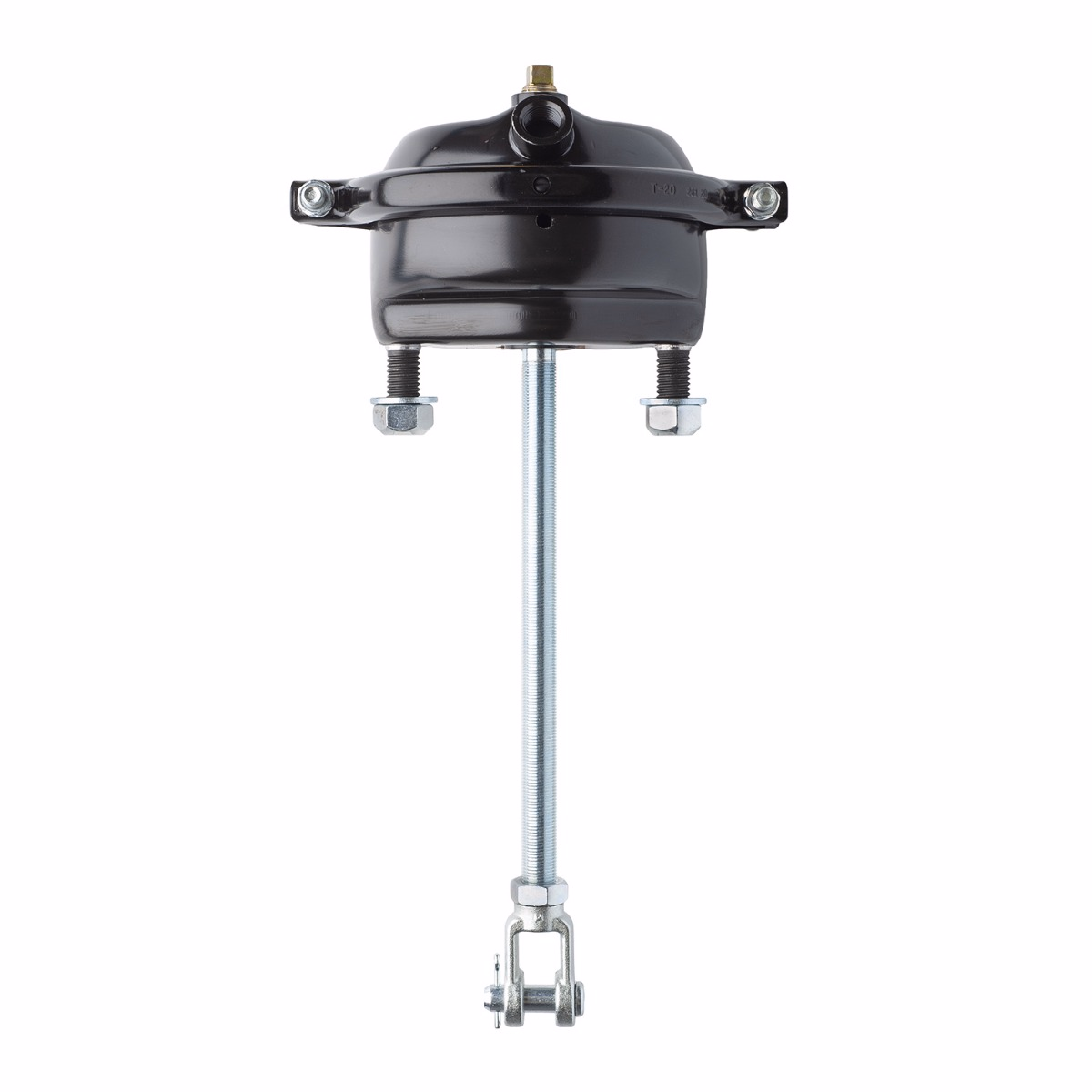

Mack Truck 5396-SC20 Service Chamber-20S
$98.14
$98.14
*41.3% Savings
$57.61
Mack Truck 5396-SC20 - Brake Chamber 20-S
Replaces:
- 25155628
- 5396-MPN36220AR
- 25169042
- 25164874
- 5396-N36220AZ
- 5396-2000001
- 5396-52000001
- 85107275
Brake Chamber 5396-SC20 - Mack Truck
Replaces:
- 25155628
- 5396-MPN36220AR
- 25169042
- 25164874
- 5396-N36220AZ
- 5396-2000001
- 5396-52000001
- 85107275
Service Chamber - Size T20
- Steel Pressure Housing; Powder coated with resistance welded air ports
- World Class Diaphragm; High quality rubber compound, resistant to heat and cold; Superior flexibility even at -40°F
- Sturdy Service Housing; Powder coated for corrosion resistance; Step bottom with 12 gauge steel
- Orange Alert® Stroke Indicator
- Self-piloting Dust Shield
- Air Port Threads 3/8-18 NPTF
- Maximum Air Pressure: 150 psi
Notes
- A = Length from mounting bracket to end of Spring Housing
- D = Dimension at Service Clampband
- E = Stud Spacing: 4.75" (120.7mm) with 5/8-11 UNC studs
- J = Pushrod Length from face of Service Housing: 5/8-18 UNF pushrod threads
- K = Distance to Clevis Pin centerline from face of Service Housing
- S1 = Service Clampband position (0°)
- T = Air Port position (90°)
TECHNICAL SPECS
| Actuator Type Size | 20 |
| Stroke Type | Standard |
| Available Stroke | 2.25", 57mm |
| A | 4.0", 102mm |
| D | Dimension at Service Clampband 8.6" 218mm |
| E | 4.75", 120.7mm |
| J | 10.20" |
| K | Distance to Clevis Pin centerline from face of Service Housing |
| T | 90° |
| S1 | 0° |
| Weight | 7.5 lbs. , 3.4 kg. |
| Quantity | 1 |
