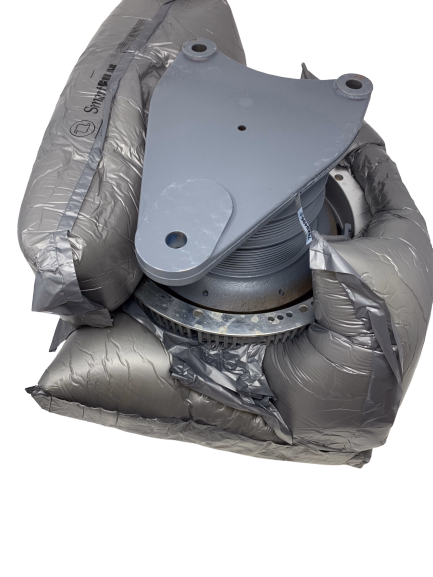

Mack Truck 85123190 Fan Hub
$1,553.72
Replaces Mack 20862243
Horton 79A94952, 79A9495-2
Â
Fan Hub 85123190 Mack Truck
Replaces Mack 20862243
Horton Service # 79A9495-2
Horton OEM # 989495
Old Service # 999495
This product can be used as a replacement part for:Â Concepts Nrec 6514-060-2, Kit-Masters 99495, Mack 40MH441M
Â
Dimensions
| DISPLAY | VALUE NAME | DIMENSION |
|---|---|---|
| A | Back Pulley Diameter | 5.48 |
| A1 | Front Pulley Diameter | 5.68 |
| B | Overall Length | 7.37 |
| CL3 | Belt Configuration | 6K, 10K |
| C | Belt Groove Location | 2.00 |
| D | Bolt Circle | 3.50 |
| E | Fan Pilot Diameter | 2.56 |
| F | Fan Blade Stud Length | 0.81 |
| F1 | Stud Thread Size | .375-24 UNC |
| G | Vertical Mounting Distance | 2.69 |
| H | Horizontal Mounting Distance | 5.39 |
| J | Center Of Jb To Top Right Mounting Hole | 2.69 |
| TMfg | Truck Manufacturer | MACK |
