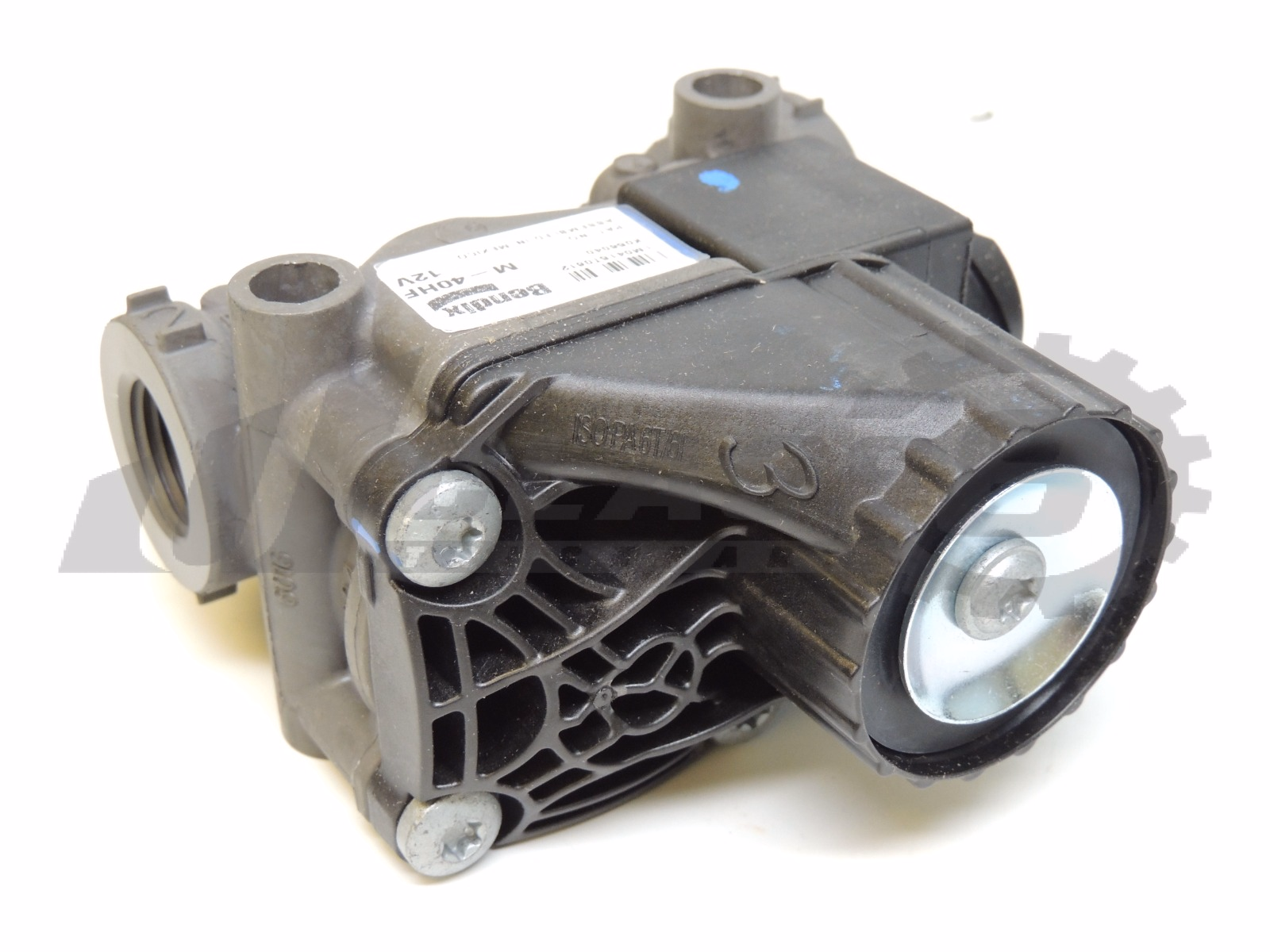

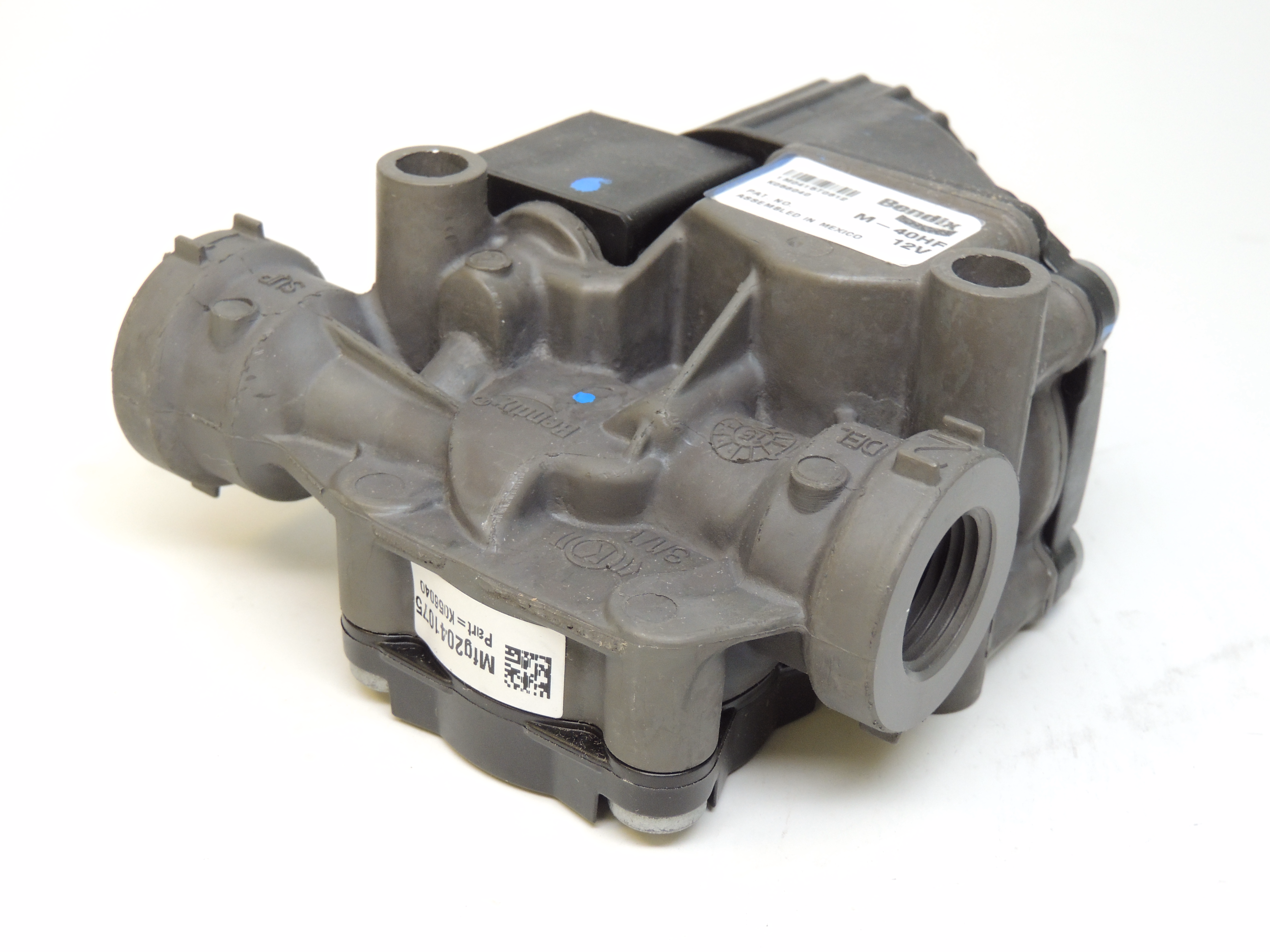

Mack Truck 85144378 Modulator

Mack Truck 85144378 - Modulator

Replaces 745-K079665

Technical Attributes Guide
Modulator Type:  HF (High Flow)
Mounting:  Ø .335 IN (2x)
Connector Type:  Circular DIN 3-Way Connector (ISO 15170-1 Twist-Lock)
Supply Port:  1/2-14 NPT
Delivery Port:  1/2-14 NPT
Exhaust Port:  Dust Shield
Voltage (Nominal);  12 Volts
Current (Nominal):  4.6 A
Duty Cycle:  15 sec / 5 min
Maximum Solenoid "On" Time:  150 sec
Maximum Operating Pressure:  150 PSI
Maximum Operating Temperature:  185 °F (85 °C)
Minimum Operating Temperature:  -40 °F (-40 °C)
