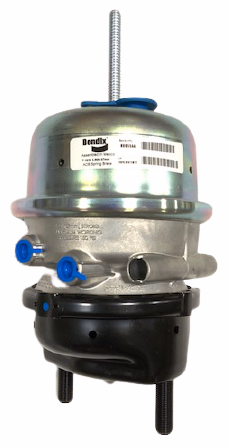

Mack Truck 85146655 Brake Chamber
$394.07
$394.07
*41.3% Savings
$231.33
Brake Chamber 85146655 - Mack Truck Replaces 21995246
Mack Truck 85146655 - Brake Chamber
Replaces 21995246
Attributes:
Chamber Style: Double Diaphragm
Chamber Type / Size: T18/24
Service Chamber Joint Type: Single Clamp Band
Stud Thread Size: M16 x 1.5-6g
Mounting Stud Length: 1.72 IN (43.7 MM)
Stud Spacing: 4.75 IN (120.7 MM)
Stroke: 2.25 IN (57.2 MM)
Parking Port (12): 3/8-18 NPTF
Port Angle: 270°
Clamp Angle: 90°
Service Chamber Vent Holes: All Open
Parking Chamber Sealed: No
Maximum Operating Temperature: 176 °F (80 °C)
Minimum Operating Temperature: -40 °F (-40 °C)
Cautionary Note(s): All vent holes must be open
Push Rod Thread / Style: Spherical End
Push Rod Length [MM]: 15. mm
Service Port (11): 3/8-18 NPTF
Push Rod Thread / Style: Spherical End
Push Rod Length [MM]: 15. mm
Service Port (11): 3/8-18 NPTF
