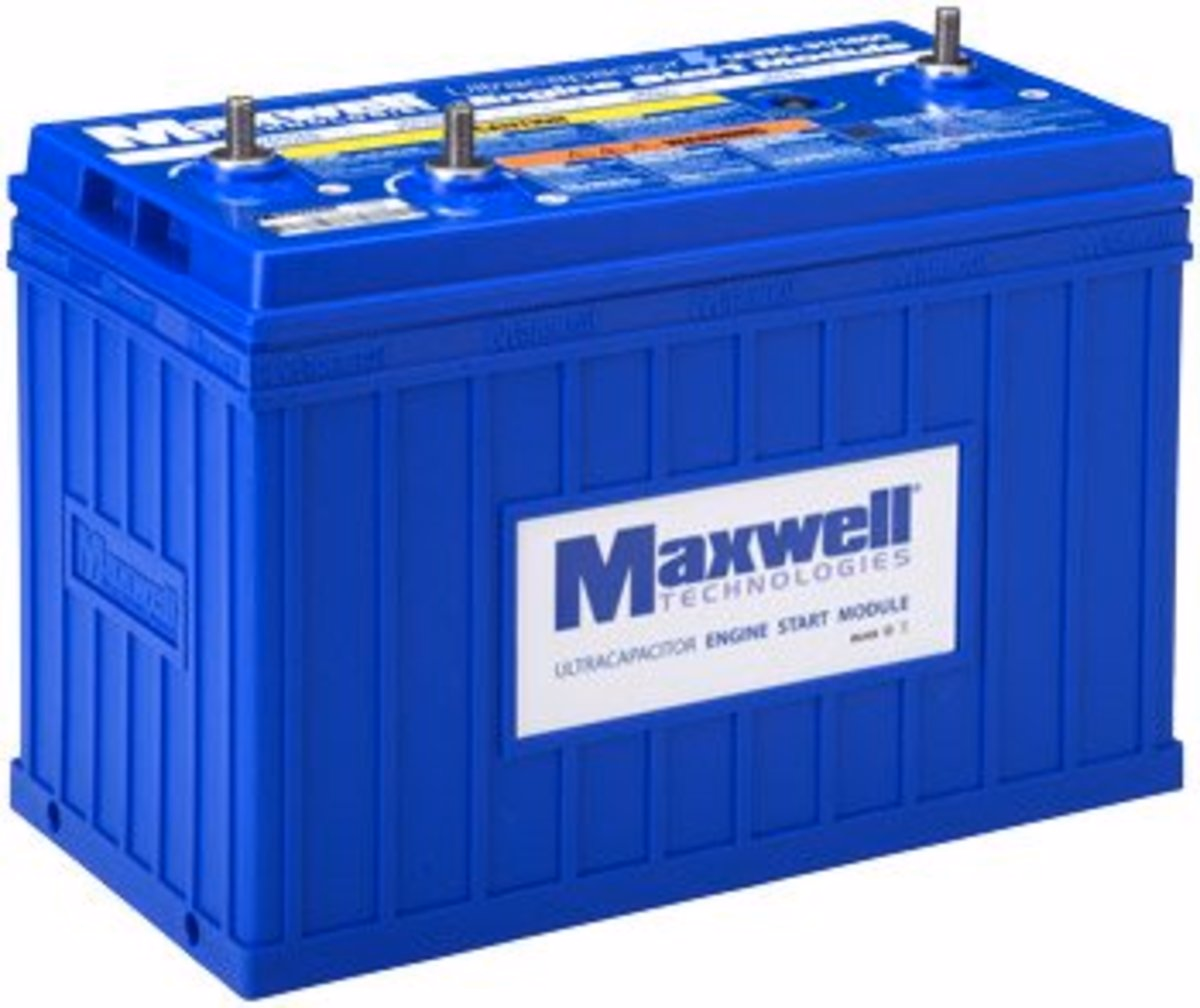

Maxwell Technologies ESM Ultra 31/1800 Ultracapacitor Engine Start Module

$775.52
Skip to the end of the images gallery
Image 1
Skip to the beginning of the images gallery
What is an Engine Start Module? An ESM works in tandem with batteries, extending usable life by providing reliable burst power at ignition.
Details More Information Reviews

What is an Engine Start Module? An ESM works in tandem with batteries, extending usable life by providing reliable burst power at ignition. Ultracapacitors use an electrostatic field to store and deliver power. They charge and discharge in just fractions of a second, supplying rapid bursts of energy to crank the engine over. Reliable starts in any extreme, just what drivers count on.

  • Starts your truck every time, Over a million starts, Weighs only 21 pounds
  • Operates reliably from -40F to 149F
  • Eliminates costs associated with dead or drained batteries
  • Reduces the need for idling to maintain battery voltage
  • Easy to install-just like a standard Group 31 battery, Extends the life of lead acid batteries
  • PNSULTRA311800
  • White Paper on How Ulticapacitors Improve Starting Reliability of Truck Fleets
  • Voltage Input voltage (B+) 10 - 18 V
  • Output voltage (max.) 16.2 V
  • Cold cranking amps1 1800 CCA (3 sec. crank)
  • Peak power2 32.8 kW
  • Maximum recharge time 20 minutes (recharge from battery at 10 A)
  • BCI Group 31
  • 13”L x 6 13/16” W x 9 7/16” H
  • (330mm L x 173mm W x 240mm H)
  • Terminals SAE 3/8"-16 UNC, 3 each
  • Environmental Design for heavy truck battery box environments
  • Weight 21 lbs (9.5kg)
  • Current draw 25 A max. (from battery)
