Road Choice AS9069 Air Spring Same as: Firestone: W01-358-9069 Goodyear: 1R12-069
$151.10
$151.10
*30.03% Savings
$105.73

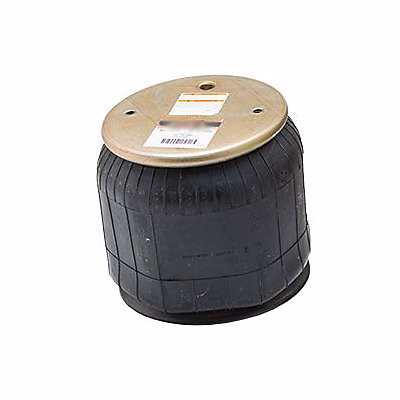

Road Choice AS9069 Air Spring
- Road Choice Air Spring AS9069
- Cross References Volvo 83176126

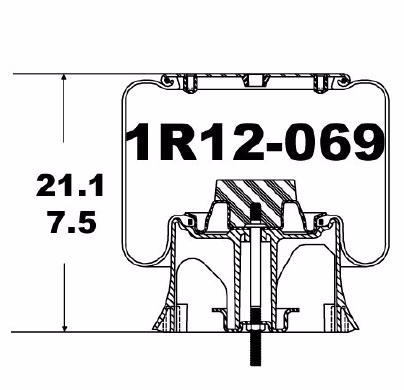

- Same as: Firestone: W01-358-9069 Goodyear: 1R12-069
- Bead Plate Diameter Bottom/Piston (in): 9.53
- Bead Plate Diameter Top (in): 9.00
- Body Diameter (in): 12.60
- Body Diameter (mm): 320.04
- Collapsed Length (in): 7.50
- Collapsed Length (mm): 190.50
- Combo Stud Top: 1/214 NPTF
- Convoluted Style: Rolling Lobe
- Description: Road Choice Air Spring
- Distance Between Holes / Studs Bottom (in): Stud Central Mounting
- Distance Between Holes / Studs Top (in): 2.80 / 6.20
- Extended Length (in): 18.90
- Extended Length (mm): 480.06
- Hose ID (in):
- Part Type Thread Bottom: 1/213 UNC
- Piston Height (in): 4.76
- Ride Height (in): 9.50 - 11.50
- Stud / Blind Nuts Top: 3/816 UNC
- Stud Configuration Bottom: 1
- Stud Configuration Top: 3
- Stud Mount Bottom: Stud
- Stud Mount Top Flat: 1 air inlet, 2 blind nut
- Type Bottom: Plastic Piston
