Truck Lite TL 12003Y 12 Series M/C Gry
$34.06
$34.06
*54.05% Savings
$15.65
12 Series M/C Gry TL 12003Y - Truck Lite
Truck Lite TL 12003Y 12 Series M/C Gry

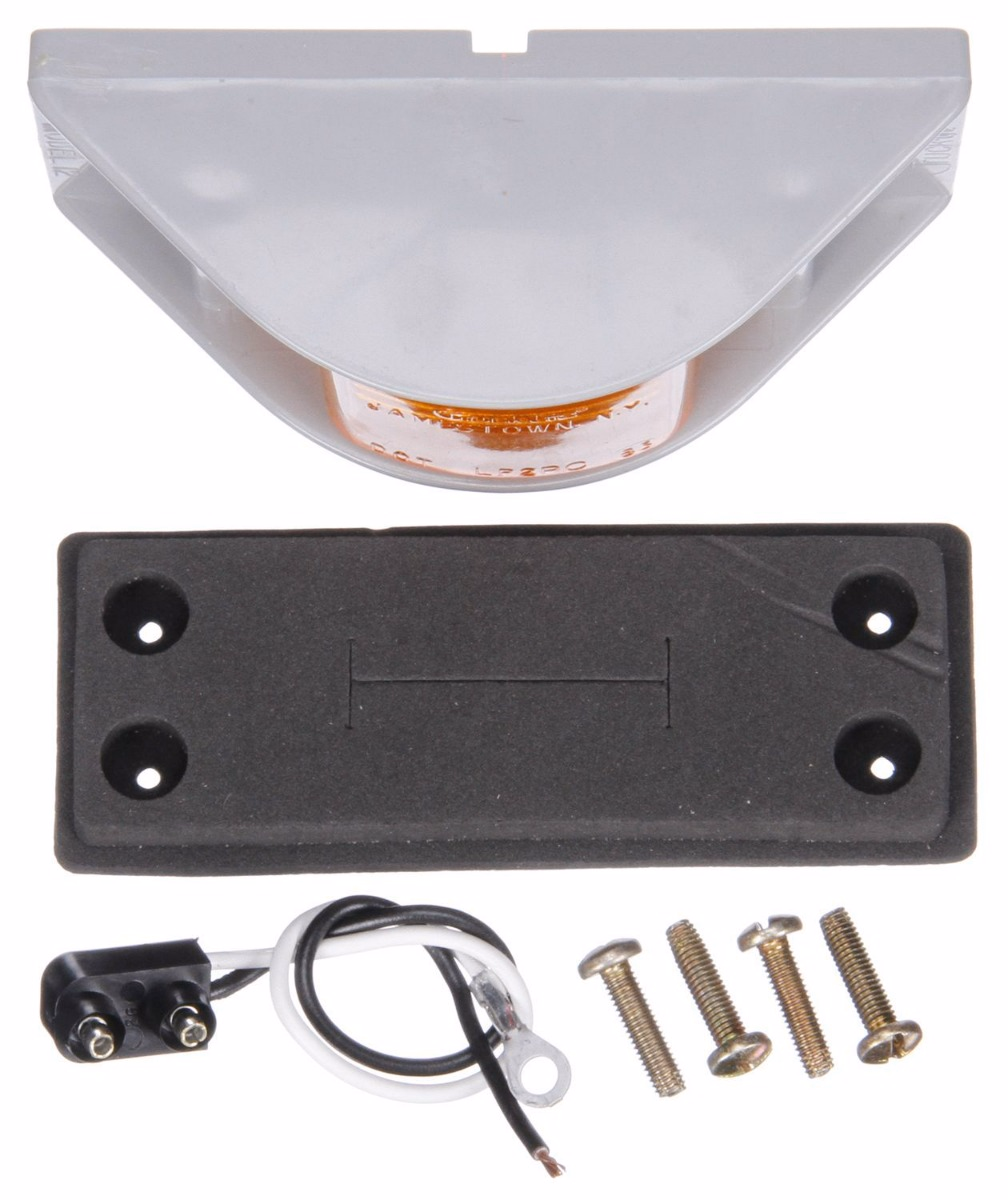

12 Series, Branch Deflector, Incandescent, Yellow Rectangular, 1 Bulb, Marker Clearance Light, PC, Gray ABS 4 Screw, PL-10, Ring Terminal/Stripped End, 12V, Kit
| Product Name | 12 Series, Branch Deflector, Incandescent, Yellow Rectangular, 1 Bulb, Marker Clearance Light, PC, Gray ABS 4 Screw, PL-10, Ring Terminal/Stripped End, 12V, Kit |
|---|---|
| New | No |
| Best Sellers | No |
| Show Size Chart | No |
| Brand | TL |
| Category | Marker Clearance Light |
| Series | 12 Series |
| Warranty | 1-Year |
| Country of Origin | ZZ |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | High-impact plastic branch deflector mount|Snap-in lamp design for easy replacement|SAE PC-rated for combination clearance/marker applications|Standard replacement on UPS models |
| Feature Highlights | PL-10|Kit|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 2049588 |
| KIT (Yes/No) | Yes |
| Lens Shape | Rectangular |
| Lighting Technology | Incandescent |
| Lamp Connection | PL-10 |
| Lamp Connection (Simplified) | PL-10 |
| Lens Color | Yellow |
| Lens Height_INH | 1.6 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 2.9 |
| Mount/Trim Color | Gray |
| Mount/Trim Material | ABS |
| Mount Type | Bracket Mount Kit |
| NAPA Part Number | 12003Y |
| Number of Diodes/Bulbs | 1 |
| Number of Wires | 2 |
| Packaging Type | Standard |
| Part Number | 12003Y4 |
| Plug Side One (Simplified) | PL-10 |
| Plug Side One | PL-10 |
| Plug Side Two | Ring Terminal|Stripped End |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | P2|PC |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Marker & Clearance Lights |
| Total Depth_MMT | 51.56 |
| Total Depth | 2.03 |
| Temp. Description | Mdl 12 M/C Gray Branch Deflect |
| Total Height_MMT | 48.77 |
| Total Height | 1.92 |
| Total Length | .33 |
| Total Width_MMT | 124.46 |
| Total Width | 4.9 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111135326 |
| VMRS | 034-004-036 |
| Voltage (VLT) | 12 |
| Weight | .2 |
