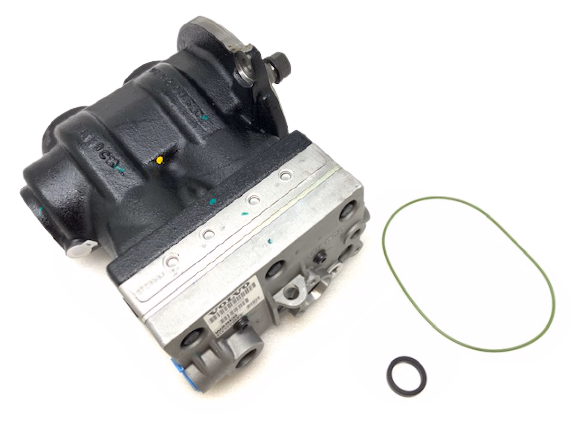

Volvo Truck 85146151 Air Compressor Kit

Genuine Volvo Compressor Kit 85146151

• 2 CYL, 636CC, VOLVO, HDEP RMN

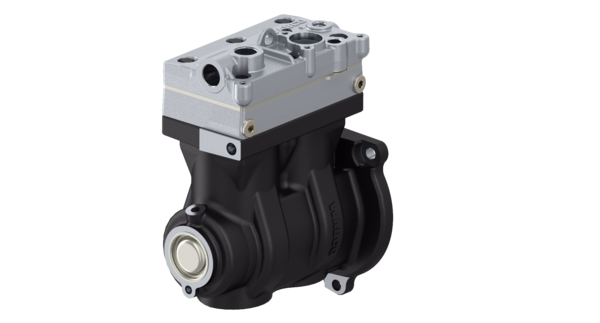

• Contains 85013935 Compressor and 85116639 Installation Kit

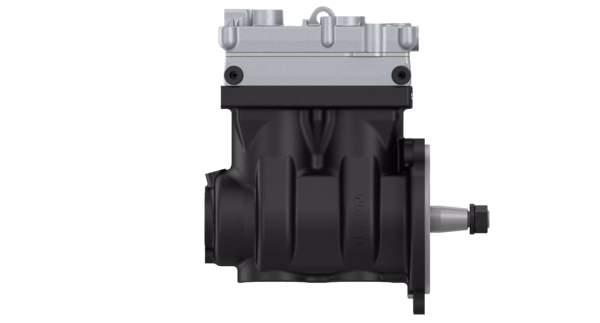

• Air Compressor 22016995
• Replaces Volvo 20846000, 20774294, 85155727, 85003281, 85000489
• WABCO S9125120290X, 9125120290X, S912-512-029-0X
• VMRS Code: 013-001-000

Technical Specifications
Brand:  WABCO Original
Part type:  Premium original quality
Technical Specification:  OE specification
Product Category:  Device
Cooling:  Water
Crankshaft thread:  M20 x 1.5
Lubrication:  Lubrication supplied from engine
Max. operating pressure:  14.0 bar
Mounting:  Flange mounting
Operating speed:  3000 (1/min)
Piston diameter:  85 mm
Piston stroke:  56 mm
Port thread 0:  Ø 34.9 mm
Port thread 2:  M26 x 1.5
Port thread 4:  M16 x 1.5
Port thread 8.1:  M12 x 1.5
Port thread 9.1:  M16 x 1.5
Port thread 9.2:  M16 x 1.5
Swept volume (cm³):  636 cm3
Type:  Twin Cylinder
Calculated Volume (dm³):  18.765
Size (mm x mm x mm):  305 x 329 x 187

• FREIGHTLINER:  TDAS9125120290X
• KENWORTH:  S9125120290XRMAN
• MACK:  8235-S9125120290, 6300-9125120290, 22062021, S9125120290X, 6300-912512029R
• MERITOR:  S9125120290, S9125120290X
• PETERBILT: S9125120290XRMAN
• RENAULT TRUCKS:  22062019
• UD TRUCKS:  22062020
• VOLVO:  22016995, 20774294, 20846000, WAB9125120290, 85013935, WAB912512029R
• WABCO REMAN CORE:  9125120299
