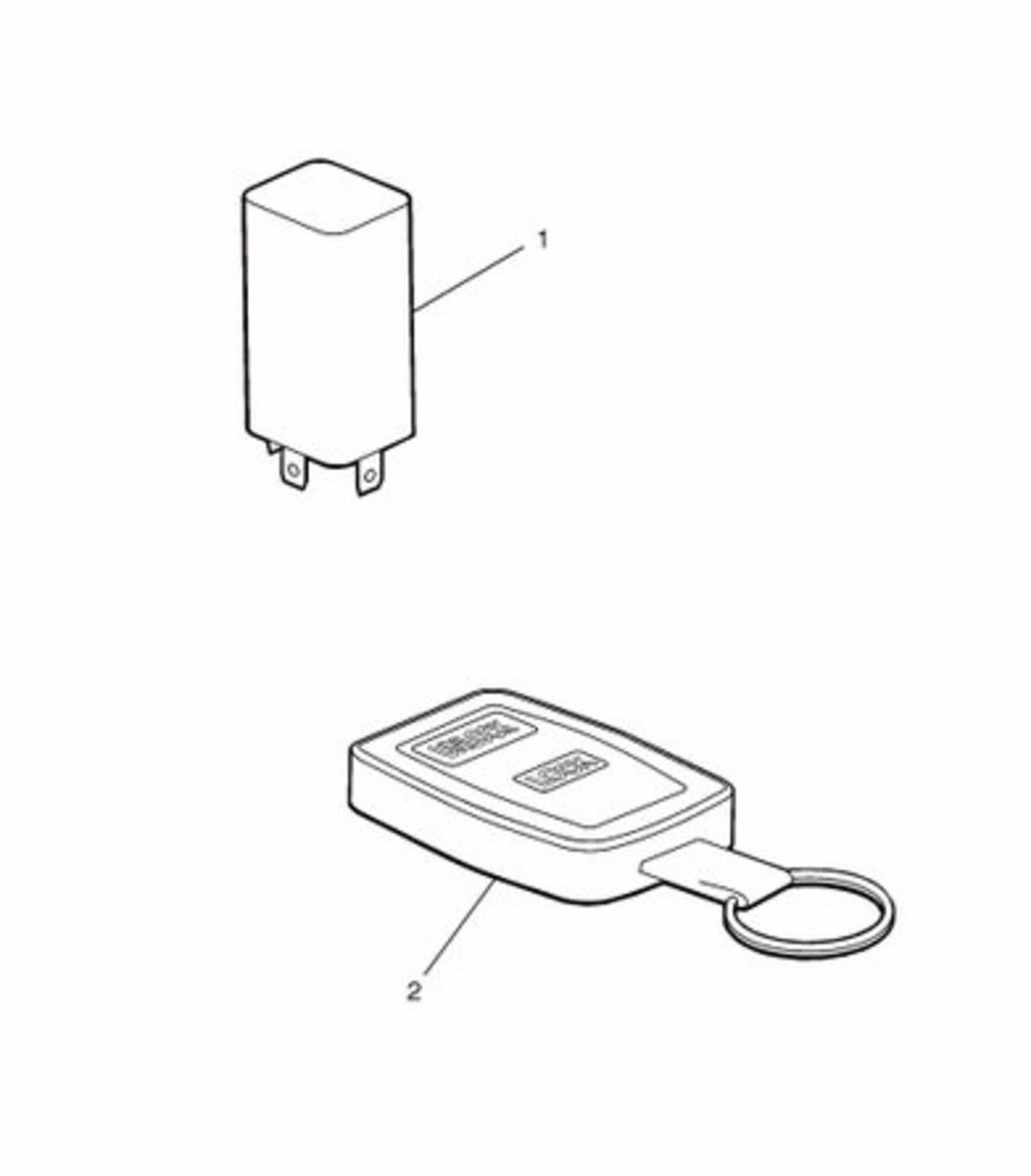

Volvo Truck 20374194 Key Fob, Remote Control

$136.13
Genuine Volvo Truck Remote Control Key Fob 20374194

Remote Control Central Door Lock, Programming


You must read and understand the precautions and guidelines in Service Information, group 30, "General Safety Practices, Electrical and Electronics" before performing this procedure. If you are not properly trained and certified in this procedure, ask your supervisor for training before you perform it.
  1. Turn the ignition key to the drive position and then off again 4 times. Stop on the fifth movement in the ON position.
    Note: This step should be completed within a 15-second time frame.
  2. The direction indicator lamps remain on and the system is now ready to be programmed.
    Note: The instrument cluster does not indicate programming mode.
  3. Press button 1 or 2 on the original remote control.
    Note: It is recommended that at least one remote control to be secured at all times, to avoid the replacement of the module-remote control pair, if both original remote controls are missing.
    Note: This step is a security feature.
  4. The direction indicator lamps turn off for approx. 1 second to indicate that the module has recognized the original remote control.
    Note: No reprogramming is possible without an original remote control.
  5. Press button 1 or 2 on each remote control that is desired to be programmed.
  6. The direction indicator lamps go out for approx. 1 second to indicate that the new remote control has been added.
  7. To program the next remote control repeat Step 5. The system will exit programming status after 15 seconds if no additional remote controls are programmed. This is also the maximum time between activating the remote control within the programming cycle. The system will also exit after eight remote controls are programmed.
  8. When the remote control returns to the 'Normal' mode, If no buttons are pressed, then the last remote control programmed, remains current for the system.
    Note: Due to the security feature, all desired remote controls to be programmed must be programmed, before the programming mode is exited into the Normal mode. To add a new remote control and keep the previous ones, all steps must be taken again having all the controls ready. The module starts each programming process anew.
