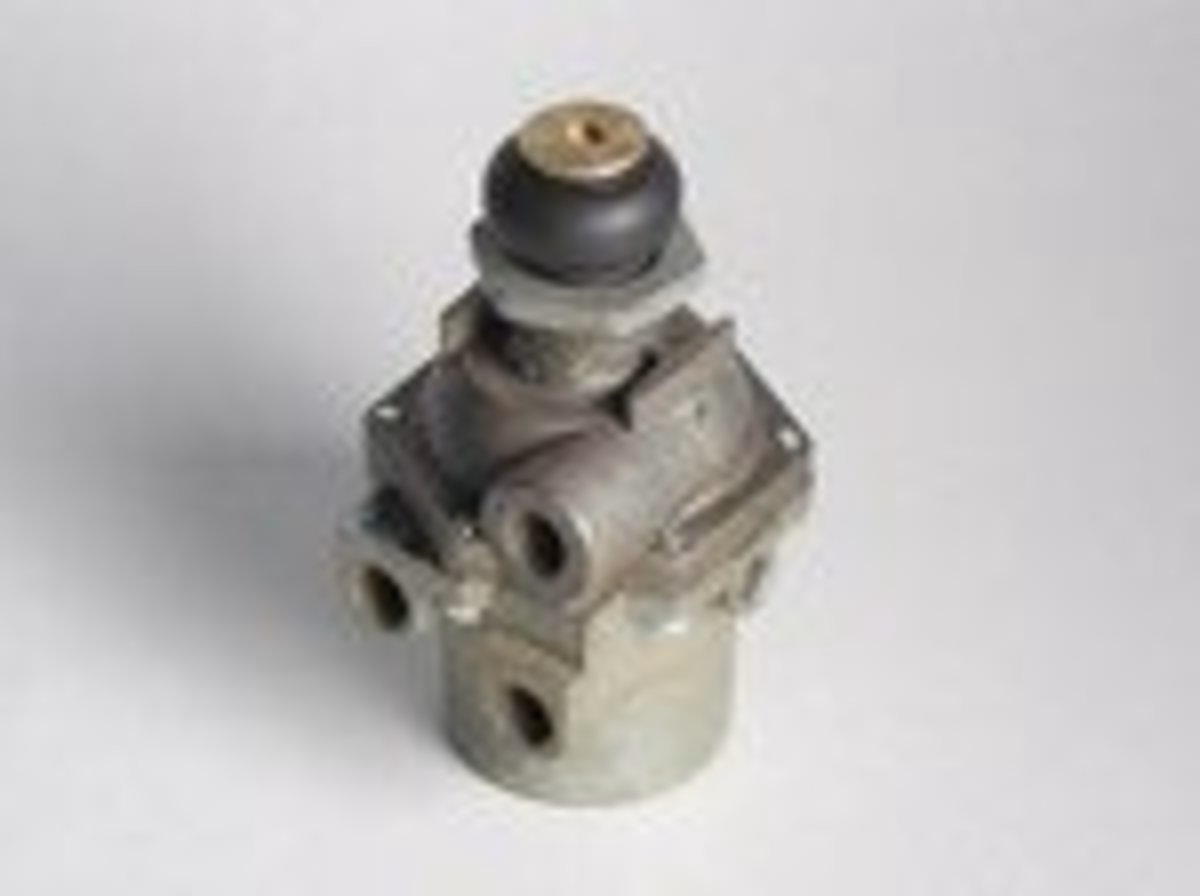

Williams Controls 116697 WM-90-DX Fail-Safe Pneumatic Regulating Valve

$480.93

Williams Controls WM-90-DX Fail-Safe Pneumatic Regulating Valve 116697.



Volvo part 1113509

  • Replaces 13323-3816, V1113509, 3081740



Mack part 25498443

  • Replaces 20QE4141, 6322-116697

Williams Controls 116697 WM-90-DX Fail-Safe Pneumatic Regulating Valve

$480.93

Williams Controls WM-90-DX Fail-Safe Pneumatic Regulating Valve 116697. WM-90-DX valves are three-way pressure regulators designed for compliance with FMVSS-124 regulations. They are subassembly parts in William' on-highway pneumatic accelerator pedals and are available in several different output ranges. Port Sizes: 1/4 -18 NPTF Maximum Operating Pressure 150 PSI (1034 kPa) Operating Temperature -40deg; F to 200deg; F (-40deg;C to 93deg;C) Flow Rating 35 SCFM @ 100 PSI (1,0 m3/min @ 690 kPa) Actuation force: Minimum to open with 100 PSI supply 12 lb. (53 N) For Maximum output with 100 PSI supply 38 lb. (167 N) Mounting Through 1.03 in (26 mm) diameter hole Materials Body Casting Iridited Die Cast Aluminum Alloy Internal rubber components Buna N Weight 1 lbs. 15oz. (0,9 kg)

  • Williams Controls WM-90-DX Fail-Safe Pneumatic Regulating Valve 116697
  • Regulated Output Range: 0-60/70 PSI (0-414/483 kPa)
  • Maximum Output: 70 PSI (483 kPa)
  • Volvo Part Number 1113509
  • Replaces Volvo V1113509, 13323-3816, 3081740
